AZCO Industries - Model VMD-08 -Air Dryers

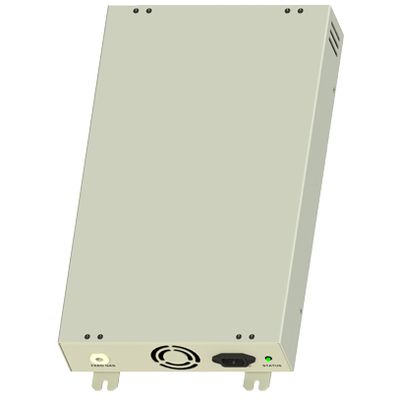

The VMD-08 is a wall mountable Air dryer unit. It can supply up to 8 l/min of dry air under normal conditions. The VMD-08 is used to supply a dry air source for units that use less then 8 l/min such as the HTU-500 and VMUS-4.
Most popular related searches
air dryer
flow meter
ozone generator
process gas
ambient air
ozone generation
air pump
air drying system
air conditioning
ozonation
- 8 l/min of dry air
- Compact Size
- Wall Mountable
- Easy to Use
- Powder coated Al. Cabinet
General: (E models)
- Voltage [VAC, 50/60Hz]: 100-240
- Power Consumption [W]: Max. 125
- Ambient Temperature [°C]: 2 to 28
- Relative Humidity [%]: 92
- Mass [kg]: 3.0
- Dimensions [LxWxH][mm]: 370 x 222 x 80
- Installation: N/A
- Warranty: 3 Year
Ozone
- Generation Process: N/A
- Process Gas [bar]: Ambient air ±0.36
- Production (max.): 8 l/min @ 25°C and 75% R.H.
Options
- Internal Air Pump: N/A
- Adjustable Output: N/A
- Interlock: N/A
- Flow Meter: N/A
- Oxygen Ready: N/A
- Vacuum Switch: N/A
- Built-in Air Dryer:N/A
Safety
- CSA File #:
- ETL File # [Canadian & US]:
- UL File #:
