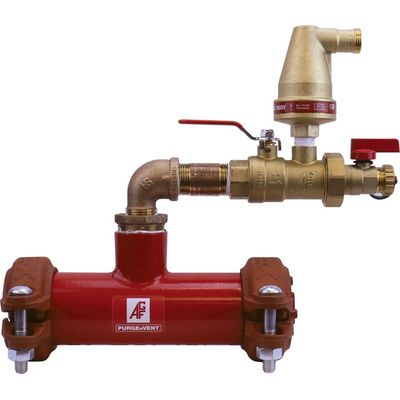

AGF - Model 7940 BLE -Automatic Air Venting Valve Branch Line Extension
The AGF PURGEnVENT™ Model 7940 BLE is a Build America, Buy America Act (BABAA) compliant automatic air venting valve assembly designed to enhance the longevity and efficiency of wet pipe fire sprinkler systems. By continuously removing excess air, the 7940BLE helps reduce the risk of internal pipe corrosion, a common issue in metallic piping systems.
NFPA 13 standards require the inclusion of an air vent on all wet pipe fire sprinkler systems utilizing metallic pipe. The PURGEnVENT™ Model 7940 BLE is built to meet this requirement, featuring an FM-approved and UL-listed 7900V automatic air vent that efficiently expels trapped air while the system is in operation.
The 7940 BLE incorporates a fabricated domestically made Schedule 10 or Schedule 40 pipe, powder-coated with a durable 3-mil finish. The assembly includes a highly visible "AIR VENT" identification sign on the underside, making it easy to locate from floor level for maintenance and inspection.
- FM Approved and UL Listed 7900 V Automatic Air Vent – Ensures reliable air release to mitigate corrosion.
- Built-in Isolation Valve and Strainer – Provides system protection and allows for easy maintenance.
- Purge Valve with Union and Hose Connection – Speeds up air removal during filling, facilitates strainer flushing and cleaning, and functions as a vacuum breaker to improve system drainage while preventing gasket displacement.
- BABAA-Compliant Domestic Components – Includes domestically manufactured couplings and end cap with fittings to meet current federal requirements.
- Conical Shape – Maximizes clearance and shields the venting valve from contamination.
- Recessed Design – Protects the vent from damage and prevents vent redundancy.
- Single-Float Mechanism – Allows only vertical movement for precise operation.
- Bubble Breaker – Enhances air passage and acts as a secondary filtration layer.
- NFPA 13 Compliant / BABAA Compliant
- FM Approved & UL Listed 7900V Air Vent
- 175 PSI Rated
- Easy-to-Locate "AIR VENT" Signage
- System Drain Vacuum Break for Faster Drainage
For optimal performance, AGF recommends installing the 7940BLE at the high end of system branch lines, where air naturally accumulates.
By integrating the PURGEnVENT™ Model 7940BLE into your fire sprinkler system, you can enhance system reliability, reduce maintenance needs, and extend the lifespan of your piping by minimizing internal corrosion risks.
