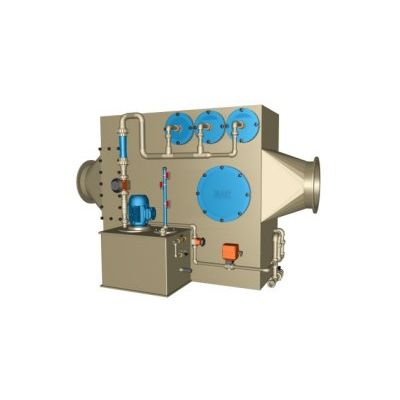

Colasit - Model RHE -Cross-Flow Scrubber

Principle : Dosing of circulating washing fluid into the horizontal exhaust air flow. Rinsing of water-soluble impurities by the addition of alkalis or acids. Tank por pollutants.

Features

• Efficiency: up to 99%
• Gas temperature:  -30 to +120 °C *
• Working pressure: +/- 1`500 Pa *
• Air flow: Standard up to 45`000 m3/h

Construction
Scrubber made of corrosion-resistant plastics: PP, PPs, PE, PVC, PVDF, GFK. The  packing inside the column ensures sufficient surface area between gas and fluid phase.  Prevention of liquid discharge by mist eliminator after cleaning phase.
Dimensioning  : Individual dimensioning, according to your needs.
