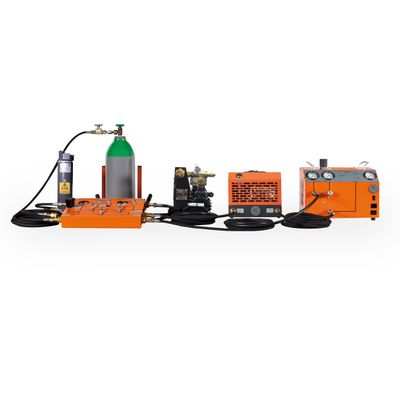

DILO - Model SF6 -Mini Series - Modular -SF6 Gas Recovery Units

Compressor unit (1,6 m³/h)

• B095R12
• For liquid SF6 storage

Vacuum compressor unit (3,3 m³/h)

• B093R30
• For recovery of SF6 gas down to 5 mbar in conjunction with the compressor

Suction pump unit (3 m³/h)

• B093R51
• For recovery of SF6 gas < 1 mbar in conjunction with the compressor

Portable vacuum pump unit (16 m³/h, < 1 mbar)

• B078R09 (with ball valve)
• For evacuation of air

Portable vacuum pump unit (16 m³/h, < 1 mbar)

• B078R19 (with solenoid valve)
• For evacuation of air

Prefilter unit (pe 10 bar)

• B077R11
• For adsorption of moisture, solid and gaseous decomposition products

Operating panel for Mini Series

• B132R01
• For easy handling of individual components
