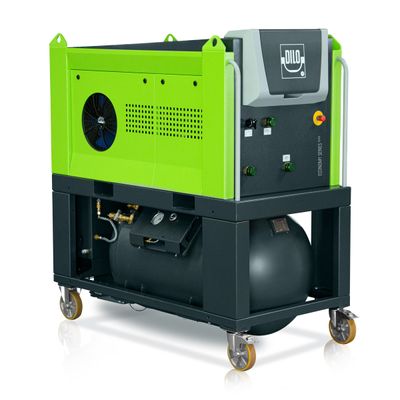

DILO - Model C4-G057R01V1 - Economy Series -Insulated Gas Handling
The service carts of the G057R01 ECONOMY series have been specially designed for gaseous and liquid storage of gas mixtures for the complete gas handling of Alternative Insulating Gases. With the device series for gas mixtures with C4-FN, DILO sets highest priorities to zero emissions. This allows the complete gas handling of Alternative Insulating Gases to be carried out efficiently and safely on site in the usual way.Most popular related searches
digital weighing scale
gas mixture
gas insulated
digital weighing
weighing scale
liquid storage
dry filter
suction pump
molecular sieve
particle filter
C4-G057R01V1
Service cart for gas mixtures with C4-FN
- Devices for storage of liquid gas mixtures are available with a max. storage pressure of 100 bar (pe)
- Recovery of gas mixtures down to < 1 mbar
- Automatic control and 10” capacitive multi-touch panel
- Indication of the important process parameters and graphic display of the selected gas flow on the panel
- Indication units selectable on the panel (e.g. bar/mbar/kg)
- Reversing switch for direction of rotation
- Digital weighing scales for gas mixture cylinders
- Reduction to transport pressure as special function
- Coupling adapted to the basic gas to prevent wrong connection
- Integrated buffer tank (1000 l or 600 l) for gaseous intermediate storage of gas mixtures
Standard equipment:
- oilfree DILO compressor (5.7 m³/h [at 50 Hz]; 6.8 m³/h [at 60 Hz]), pressure 100 bar
- oilfree suction pump for recovery of gas mixtures (15 m³/h [at 50 Hz]; 18 m³/h [at 60 Hz]), final
vacuum < 1 mbar) - vacuum pump for evacuation of air; delivery rate (configurable)
- evaporator
- dry filter (molecular sieve)
- particle filter 1 μm
- operation and indication of important process parameters via 10" touch screen with protective cover
- indication units in bar / mbar, kPa or psi / torr to be selected on the touch screen
- fork lift slots
- crane eyelets
- fixing and steerable rollers (configurable)
- drawer for tools and accessories
- 2 m long storage connecting hose, DILO coupling DN8
- digital weighing scales for gas mixture cylinders (with automatic switch-off function), 0 - 120 kg with
tare function, accuracy ± 0.02 % - induction heating system for cylinders up to max. 270 mm Ø (recommended diameters 230 mm - 270
mm) - integrated buffer vessel (configurable) for storage of homogenous gas mixtures■
wrenches for DILO couplings and filters■
paint: green-anthracite
Operating voltage:
- 208 - 240 V / 60 Hz
- 380 - 420 V / 50 Hz oder 380 - 480 V / 60 Hz
