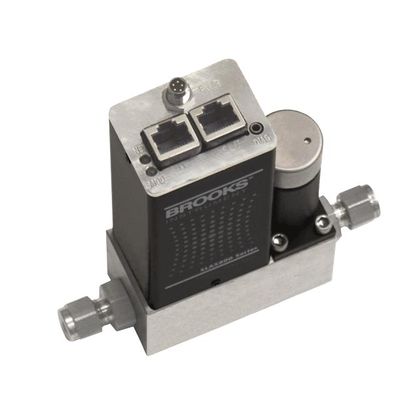

Brooks - Model SLA5800 Series -Elastomer Sealed Thermal Mass Flow Controllers & Meters

The SLA5800 Series features the high accuracy, high zero stability and high repeatability you expect from the industry leader in mass flow measurement and control technology. Engineered with a superior design - and manufactured with advanced metrology and test systems - the SLA5800 digital MFC offers a better zero drift

• ISO/IEC 17025 accredited

• SLA Series Biotech MFC offers two options packages with features created specifically to improve bioprocessing performance. See which package is right for your process.
• Long-term zero stability of <0.2% full scale per year
• Excellent accuracy backed by traceable calibration standards
• Wide range of flow ratings - from 0.003 up to 2500 lpm
• Highest pressure ratings - up to 1500 psi/100 bar (optional: 4500 psi/310 bar)
• Programmable multi-gas/multi-range capabilities
• Independent & easily accessible diagnostic/service port
• Broad array of available communication options now includes EtherNetIP™ and PROFINET which feature a web-based interface that lets you easily configure network settings.
• Modular design is easy-to-service at the factory or in the field

• ISO/IEC 17025 certification and calibration available with flow accuracy of ±0.6% of SP
• Enhanced valve shut-off, wide turndown, certifications and approvals (USP Class VI/ADI-free) for all elastomeric material in the MFC’s gas stream (wetted path) including valve seats and o-rings available with the SLA Series Biotech MFC
• Long-term sensor stability reduces maintenance and periodic recalibration requirements, reducing total cost of ownership
• Proprietary Brooks Instrument thermal sensing technology delivers superior signal to noise performance for improved accuracy at low set points
• Choose one device platform for different gases and flow ranges
• Storage and pre-programming of up to six gas calibrations lets users easily switch between different gases and ranges on a single device, and reduces inventory
• User-accessible service port simplifies installation, troubleshooting and diagnostic tasks without disturbing flow controller operation
• Durable, robust metal top lid prevents damage during installation
• EtherNet/IP™ and PROFINET permit multiple, additional diagnostics beyond those provided by the mass flow controller alone, giving users rich, real-time system information
• Traceable calibrations to meet industry standards and regulatory requirements

• Life sciences
• Chemical and petrochemical catalyst research and pilot processes
• Laboratory and analytical systems
• Fuel cell technology
