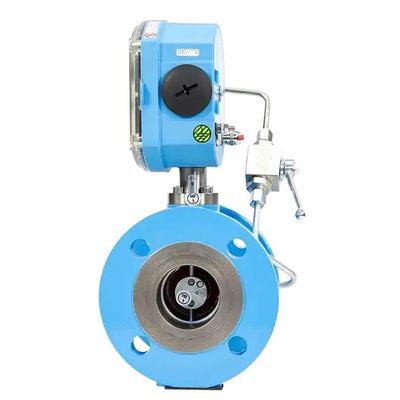

RMG - Model TME 400-VC -Electronic Volumeter with Integrated Volume Corrector

A new class of instruments has been created with the TME400-VC series: Sensors for pressure and temperature of the sample gas are integrated in the measuring unit and electronic counter. Volume and flow rate can then be calculated from these measured values, even under standard conditions. For conversion methods, you can choose between GERG88, AGA 8 Gross Methods, AGA 8 NX19 and GOST30319. All measured and calculated values can be displayed and are available on the Modbus interface. For control purposes, a measured value can also be output in analog form. As with the TME400-VM, parameterization, e.g. entering the gas composition values for conversion, is preferably carried out via the RMGViewTME software. This series is also battery-powered.
