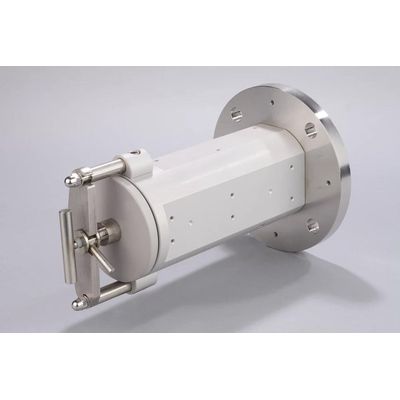

M&C - Model SP2000 - Gas Sample Probe

M&C - Model SP2000 -Gas Sample Probe

Gas sample probe type SP2000 with external ceramic filter type S-2K150, filter porosity: 2 µm, filter element seal and cover seal out of Viton, mounting flange: DN 65 PN 6B with G 3/4" f connection, material: SS 316Ti, Viton, ceramic.

Most popular related searches

ceramic filter element

filter element

ceramic filter

process gas sampling

The SP2000... sample probes are used for continuous sampling of gases from dust-loaded, high-temperature or humid processes.

Gas sample probe with filter housing and mounting flange made of stainless steel
With ceramic filter element, other filter materials are optional
Adaption to nearly all process conditions due to its compact and modular design
Easy installation and low maintenance
Low dead volume
Material of sample-contacting parts: stainless steel, FKM, Novapress^®, ceramic
Basic version with a large variety of available options
Explosion-proof: No
Heating: No
Filter surface: Medium
Shutoff/blowback: No
Calibration: No
Portable: No
Power supply: Without
Material: Stainless steel
