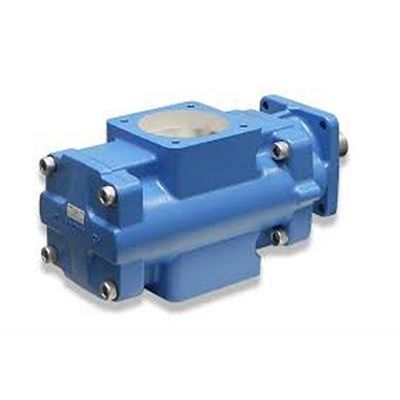

KRACHT - Model KF 730 ... 1500 -Gear Pumps

SHARE

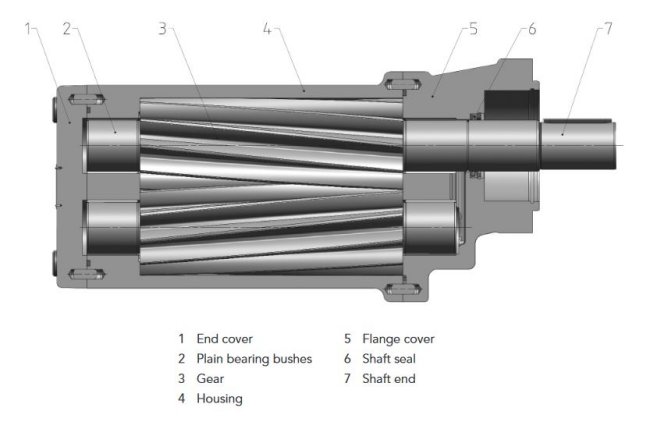

Gear pumps KF are used for pumping a wide variety offluids. Gear pumps KF are distinguished especially bytheir wide range of variants which are assembled as required on the modular principle and also permit subsequent upgrade. The standard housing sections are of grey cast iron. The gear units are manufacturedfrom high-strength case-hardening steel, hardened andmounted in special multi-compound plain bearing bushes. The standard drive shaft is sealed by single radial lip-type seal. All pump sizes incorporate helicaltooth system. This feature, combined with special geargeometry, results in extremely low noise levels and reduced pressure pulsation.

Most popular related searches
gear pump
multistage pump
mounted bearing
pressure reducer
solids containment
pump seal
pump system
sealing system
  • The fluids should ensure a certain minimum lubricating properties, should not contain solids and should be chemically compatible.
  • Avoid dry operation.
  • The pumps may only be operated in the specified direction of rotation, as otherwise the shaft seal will be destroyed.
  • In order to prevent excessive overpressure, a safety valve should be provided in the system.
  • Sealing of the drive shaft:
    • Single radial lip-type seal
    • Double radial lip-type seal (Quench)
    • Mechanical seal
  • Outboard bearing to take up input drive-side radial load
  • Various shafts ends and gear units, as well as flange mounted versions, bearing alternatives, multi-stage pump combinations for your special application are available on request.
  • Our Sales engineers will be pleased to advise you.

The following should be note for direction of rotation:

  • when looking at the pump shaft end, the direction of pumping is from left to right if the shaft rotates clockwise.
  • when looking at the pump shaft end, the direction of pumping is from right to left if the shaft rotates counterclockwise.
  • Connecting flanges
  • Couplings
  • Bell housing
  • Quench tank
  • Attenuation elements
