General - Model FS/FD Series -Fiberglass Single Bed Odor Control Systems
General Carbon FS/FD Systems provide a simple, cost effective solution for large odor control problems and air treatment applications. The adsorber vessel is made from fiberglass reinforced plastic for corrosion and weather resistance as well as strength and durability. All connections are laminated onto the tank during the hand lay-up process. Large manholes allow the carbon to be serviced without confined space tank entry. Internal screen, FRP grate and structural support beams are field replaceable.
Available features include:
- 2-24″ Diameter Manways with FRP Covers
- Inlet and Outlet Sized to Your Project
- 2″ Overflow / 2″ Drain with CPVC Valves
- Stainless Steel Carbon Bed Ground Rod
- Quality Virgin or H2S Control Carbons
- “Hatch Card” H2S Indicator System
- FRP Internal Support Ring and Grate
- Dwyer Differential Pressure Gauge
- Motor and Fan Designed to Your Job
- Internal Exhaust Stacks

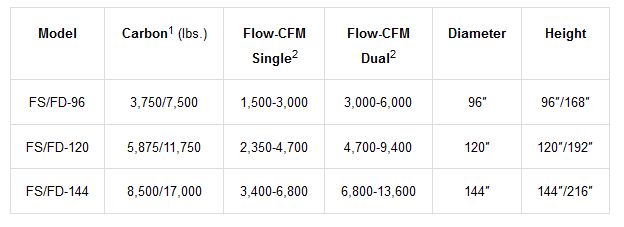

1Pounds of Carbon calculated using Sulfursorb Plus (25 lbs/cuft). Sulfursorb-A is 28 lbs/cuft. 4×8 is 30 lbs/cuft.
2Flow rate is calculated using a recommended maximum of 60 fpm and a recommended minimum of 30 fpm.
CAUTION!
Wet activated carbon removes oxygen from air causing a severe hazard to workers inside carbon vessels. Confined space/low oxygen procedures should be put in place before any entry is made. Such procedures should comply with all applicable Local, State and Federal guidelines.
