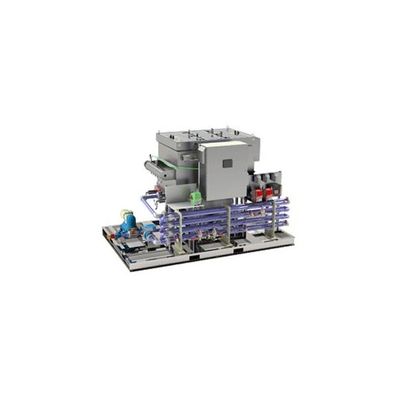

H2Flow - Skid Mounted DAF Pilot / Rental Unit

System specifications: Designed to treat up to 22 US GPM (5 m3/hr). The pilot unit comes mounted on stainless steel skid measuring: 3.13 m L x 1.84 m W X 1.92 m H (123.2" L x 72.25" W X 75.5” H). Weight of skid: 3000 lbs empty / 5,010 lbs full (1361 kg empty / 2273 kg full).

Most popular related searches

metering pump

sludge pumping

sludge pump

dissolved air flotation system

System is complete with the following:

Magnetic flowmeter and totalizer
Coagulant metering pump
Peristaltic Pump (for polymer)
pH controller with probe
Acid/Caustic metering pump
Pipe flocculator for chemical mixing – PF 5
Stainless Steel DAF clarifier unit - Delta 5
Air saturating recirculation pump
Sludge raking system with adjustable speed control
Bottom sediment pneumatic valve
Sludge Pump
PLC Control panel with HMI for complete automatic operation and alarms
Other available accessories: screen, sampler, instrumentation, sludge press, polymer make-down tank, air compressor

Utilities required for system operation:

Optional Voltage (575V or 460V/3/60Hz OR 230V/1/60Hz)
City water source for washdown and polymer makedown
