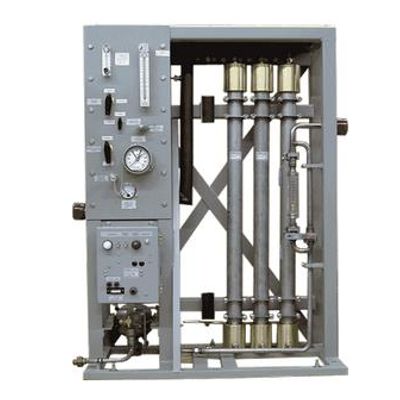

Howell - Model 6995 Mk I, IA, II, III, IV -Membrane Air Dehydrator
Designed for continuous, automatic operation. Moisture is removed by an array of BEKO DRYPOINT™ membrane modules. Solid contaminants and oil aerosol are removed by mechanical filtration.
Most popular related searches
compressed air treatment
dehydrator
air treatment
membrane module
desiccant dryer
humidity monitoring
compressed air
aerosol removal
integrity monitoring
monitor humidity
- The industry standard in membrane air dehydration.
- Integrated Condition Assessment System (ICAS) Equipped

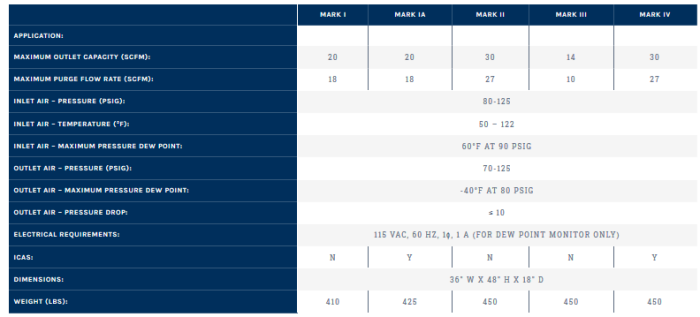

- Air capacity to 20 scfm.
- -40° F dew point is recommended for shipboard electronics air.
Notes:
- Fits the same “footprint” as the desiccant dryers it replaces.
- Adapters provided to allow replacement of older dryers.
- Does not remove oxygen from the air stream; does not vent oxygen-rich purge.
- Complete with instrumentation package to monitor operation.
- Purge air consumption constant with varying inlet pressure.
- Electrical power needed only for humidity monitoring.
Built in accordance with DDG-51 Flight IIA specification FY96-551-07A. Welded in accordance with MIL-STD-278. Fully qualified to MIL-S-901D, High Impact Shock (Grade A), and MIL-STD-167-1, Vibration (Environmental) Shipboard. ICAS units are DDG-51 specification FY96-551-07A, PSC4.
The Model 6995 has been:
- Approved for all classes of surface combatants and amphibious ships
- Selected for new construction ARLEIGH BURKE DDG 51 class
- Selected for new construction ZUMWALT DDG 1000 class
- Approved for Surface Combatant SHIPALTS: CG47-587D; DDG51-283D; DD963-982D; FFG7-393D
- Approved for Amphibious Ship AERs: LHA1 AER 26/98; LHD1 AER 18/98; LPD4 AER 30/98; LSD 36 AER 16/98; LSD 41 AER 21/98; LSD 49 AER 25/98; LCC 19 AER 16/98; AGF 3/11 AER 05/98
