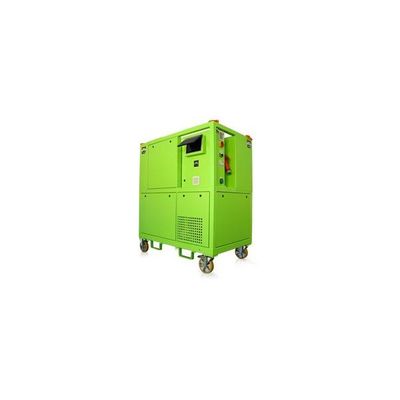

DILO - Model C4-Z1004R11 -Mixing Unit for the Handling of Gas Mixtures

SHARE
The mixing unit has been specially developed for the handling of gas mixtures based on C4-FN and their specific requirements. A total of four gas components can be mixed. The gas mixture is circulated by the compressor to generate a homogenous mixture. Using the integrated compressor, the generated gas mixture can be filled directly into gas compartments or for transportation, stored into pressure vessels with up to 100 bar.
Most popular related searches
gas mixture
mixing system
mixing vessel
digital weighing scale
weighing scale
suction pump
digital weighing
particle filter
mobile weighing scale
gas controller

If necessary, e.g. when changing the mixing ratio, the mixing vessel can be emptied completely (final vacuum < 1 mbar). With this unit the insulating fluids C4-FN can be completely fed into the mixing process and no gas loss occurs.

Adjustable gas components:

  • C4-FN
  • Carbon dioxide CO²
  • Oxygen 0² (admissible range: 0 to 20%)
  • Nitrogen N²
  • Gas storage: up to max. 100 bar
  • Recovery of gas down to < 1 mbar and storage into cylinder or gas compartment
  • Automatic control and 10” capacitive multi-touch panel
  • Optional operation via mobile devices
  • Digital weighing scales for pressure cylinders

Technical data:

  • Dimensions: Length 1.400 mm, Width 900 mm, Height 1.500 mm
  • Weight: 720 kg

Standard equipment:

  • Oilfree B280R80 compressor (5.7 m³/h [at 50 Hz]; 6.8 m³/h [at 60 Hz]) 100 bar
  • Vacuum compressor 3.3 m³/h (at 50 Hz) and 3.9 m³/h (at 60 Hz), final vacuum < 3 mbar)
  • Oilfree suction pump for recovery of mixing vessel (15 m³/h [at 50 Hz]; 18 m³/h [at 60 Hz]), final vacuum < 1 mbar)
  • 100 l mixing vessel
  • Particle filter
  • Indications in bar/mbar, kPa or psi/torr, selectable on the operating panel
  • Fork lift provisions
  • Digital weighing scales for storage cylinders (with automatic switch o› function), 0 - 120 kg with tare function, accuracy ±20 g
  • 3 m long storage connecting hose DN8, with coupling tongue part DN20 (filling of cylinders)
  • Frame with crane eyelets
  • Couplings DN20
  • Fixing and steerable rollers
  • Di›erent wrenches
  • Paint: green (RAL DESIGN 120 70 70)
  • Operating manual

Operating voltage:

  • 208 - 240 V / 60 Hz
  • 380 - 440 V / 50 Hz or 380 - 480 V / 60 Hz
