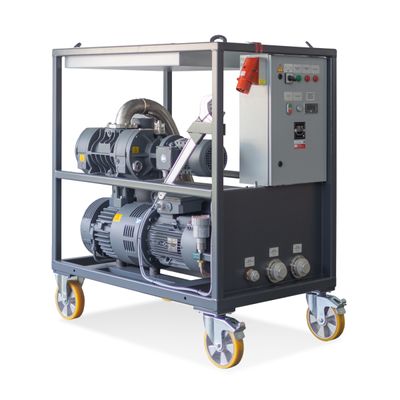

DILO - Model Z300R11 and Z300R12 -Mobile Vacuum Pump Unit

FromDILO Armaturen und Anlagen GmbH

SHARE

This series is very powerful and allows quick evacuation of large gas compartments. A vacuum pump combined with a Roots pump enables to obtain a final vacuum of 2x 10-2 mbar. Thus not only air but also moisture is removed from the circuit breakers. Therefore the subsequent filling process is prepared perfectly. Three coupling connections (DN20 and 2 x DN40) allow the evacuation of two gas compartments at the same time without any manifold that means more efficiency and higher productivity during operation.

Most popular related searches

vacuum pump system

For evacuation of air or nitrogen

Z300R11

Nominal suction capacity 165 m/³ vacuum pump
Nominal suction capacity 250 m³/h Roots pump

Z300R12

Nominal suction capacity 205 m/³ vacuum pump
Nominal suction capacity 495 m³/h Roots pump

Steerable and fixing rollers allow comfortable transportation
Tool box for hoses and accessories
Self-closing couplings
Protection of the vacuum pump against overpressure by a solenoid valve
Different hose lengths are available as option
Digital vacuum indication in mbar

Vacuum pump units with larger capacities are available on request.

Technical data:

Dimensions: L 1,250 mm, W 800 mm, H 1,500 mm
Weight: 450 kg
Operating voltage: 208 - 240 V / 380 - 460 V / 50 - 60 Hz 3-phase current

Standard equipment:

Roots pump, mounted on a vacuum pump, final vacuum 2 x 10-2 mbar
Solenoid valve DN50
DILO couplings DN20 and 2 x DN40
Digital vacuum indication in mbar
Electric control
Fixing and steerable rollers
Crane eyelets
Tool box for hoses
Different wrenches
Paint: orange (RAL 2004)
2 operating manuals in German, English or French
