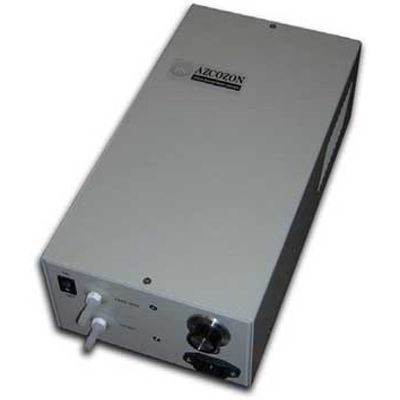

AZCO - Model HTU-500 - Ozone Generator

AZCO - Model HTU-500 -Ozone Generator

The HTU-500 ozone generator is an ideal, economic solution for very small ozone output applications where less than 1 gram/hour of ozone is required. This unit is vacuum driven and must be incorporated into an engineered system to operate.

Most popular related searches

corona discharge ozone generator

corona discharge ozone

~1g/hr Output
Wall mountable
Compact form factor
Easy to install and operate
Powder coated Al. cabinet

General

Voltage [VAC, 50/60Hz]: 100-120 (200-240)
Power Consumption [W]: 28
Ambient Temperature [°C]: 2 to 40
Relative Humidity [%]: 92
Mass [kg]: 2.6 (3.4)
Dimensions [LxWxH][mm]: 372 x 182 x 104
Installation: N/A
Warranty: 3 Year

Ozone

Generation Process: Pulse, Corona Discharge
Process Gas [bar]: Dry air or Oxygen ±0.36
Production On Oxygen: ~1 g/hr @ 1l/min, see spec.

Options

Internal Air Pump: O
Adjustable Output: S
Interlock: O
Flow Meter: N/A
Oxygen Ready: S
Vacuum Switch: N/A
Built-in Air Dryer: N/A

Safety

CSA File #
ETL File # [Canadian & US]
UL File #
