AZCO - Model RMU16-K6 -Rack Mountable Ozone Generator

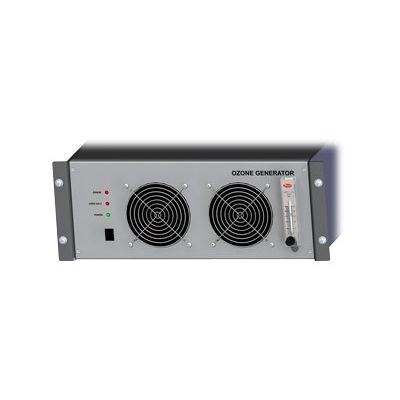

The RMU16-K6 is a rack mountable Ozone generator which produces up to ~16 g/hr of ozone @ ~16 l/min of dry air. This unit utilizes our Standard 316 S.S and quartz electrode technology. The versatility of this design allows it to be combined with many units to create modular system able to produce a wide variety of ozone outputs, and is usually used in conjunction with an AZCO industries air dryer. Rack mounted units such as this are required to have a controller (e.g. RMMC, or RMDC) and a BBWT balance barometer. The picture below depicts a single RMU16-K6 ozone generator.
Most popular related searches
ozone generator
ozone generation
ozonation
flow meter
air dryer
industrial air
corona discharge
process gas
air pump
corona discharge ozone generator
- 16 g/hr Output on Dry air
- Rack Mountable
- Powder Coated Al. Cabinet
- Modular Form Factor
- Standard Flow Meter
- Easy to use and install
General
- Voltage [VAC, 50/60Hz]: 100-120
- Power Consumption [W]: 440
- Ambient Temperature [°C]: 2 to 32
- Relative Humidity [%]: 92 (non-condensing)
- Mass [kg]: 12.6
- Dimensions [LxWxH][mm]: 370 x 484 x 177
- Installation: Refer to AZCO`s installation manual for specific product
- Warranty: 3 year
Ozone
- Generation Process: Pulse, Corona Discharge
- Process Gas [bar]: Dry air, Free of dust and oil. Maximum pressure +- 0.36
- Production On Dryair: ~16 g/hr.
Options
- Internal Air Pump: N/A
- Adjustable Output: N/A
- Interlock: N/A
- Flow Meter: S
- Oxygen Ready: S
- Vacuum Switch: N/A
- Built-in Air Dryer: N/A
