Redoma - Model SE Series -Separators for Cable Recycling Plants - Up to 6000 kg/h

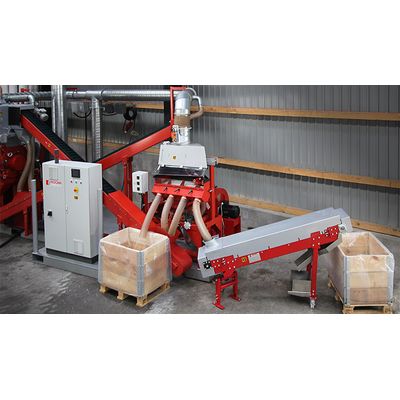

The separator forms the central part of a REDOMA cable recycling plant. The REDOMA separators have three or more outlets, separating the granulated cable into metal, insulation and an intermediate fraction that contains granules where the insulation is still sticking to the copper wire. This middling fraction is continuously fed back for re-granulation guarantying a maximum purity of copper and a minimal loss of copper in the plastic fraction.
Most popular related searches
cable recycling plant
recycling plant
cable recycling
air intake filter
cable separator
cable granulation
air intake
air valve
copper wire
air filter replacement
Optimum separation result is achieved by setting three variables, e.g. eccentric speed, air flow and inclinations of the separator table.
- Suitable for all types of dry cable
- Separates granules from both copper and aluminium cables
- Even material flow guarantees maximum purity of the end products
- Minimum of movable parts in the machine
- Requires very few spare parts and very little maintenance
- Eccentric speed and air valves are remote controlled by potentiometers
- Air flow is controlled by three or four valves, respectively
- Blower with air intake filter
- Replaceable separator deck with stainless steel screen
- Copper and aluminium purity minimum 99.5%

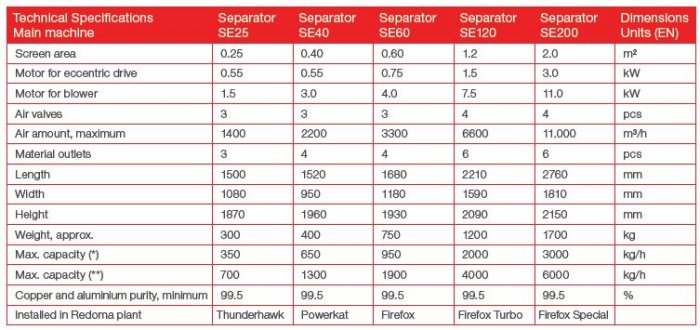

*) Based on cable with copper content of 40%
**) Based on cable with copper content of 70%
