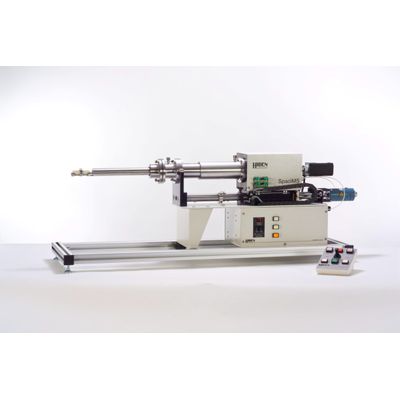

Hiden - Model SpaciMS -System for Determination of Intra Catalyst Reactor Chemistry

The Hiden Analytical spatially resolved capillary inlet MS (SpaciMS) is the first commercially available instrument of its kind.

The SpaciMS inlet was originally conceived and developed by researchers at the Oak Ridge National Laboratory and Cummins, Inc. to study diesel catalysis (1) and has been further developed for a whole range of applications.

The 16 capillary sampling probes and thermocouples are arranged in an X-Y array. A Z-shift provides movement and accurate positioning of the array in the Z plane. In usual practice, the 16 capillary sampling probes are sequentially analysed by the MS. The Z-shift is then actuated to move the sampling probe array to the next incremental Z position and the analysis sequence is repeated. On completion the analytical data provides a spatial representation of temperature and sample gas composition of the volume enclosed within the X-Y array over the total incremental Z distance moved.

• 16 Capillary inlet system
• Software controlled sampling stream position
• Z-Drive for positioning of inlet positions
• Thermocouple inputs for temperature measurement at sampling point
• Minimally invasive
• 3-D Mapping of intra-reactor gas composition
• High temporal distribution

• Catalysis

Measures the real-time concentration of gases inside a catalyst monolith

• Mass range: 200 or 300 amu
• Minimum detectable concentration: 100 ppb
• Maximum detectable concentration: 100 %
• Sample inlet pressure: 100 mbar to 2 bar abs
• Sampling inlet: Heated flexible silica capillary
• Fast measurement speed: Up to 650 measurments per second
• Number of inlets: Up to 16 (depending on sample size)
• Number of Thermocouples: Up to 16 (depending on sample size)
• Sample flow required: Options for < 1 atm cc/min to 20 atm cc/min
• Corrosive gas sampling options: Yes
