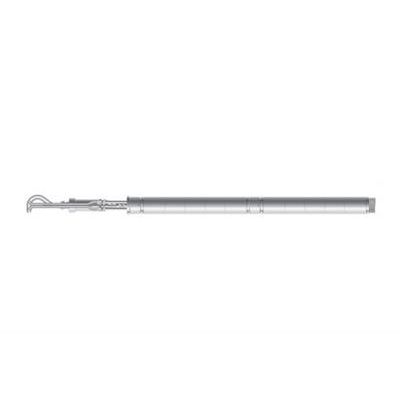

Dividable isokinetic probes are the answer to the common problems of shipping, handling in reduced space area and storing of uncomfortably long probes. With a light weight and a high strong section, this probe allows an overhang up to 5 meter with reduced deflections. The testing head consists of a suction tube, an "S" Pitot tube, a gas analysis tip and a temperature measure probe. Through a polarised joint it`s possible to maintain the right position of the nozzle during the assembling of additional extension tubes. Overall dimensions have been reduced allowing the probe, complete with isokinetic assembly, to enter through an 80mm diameter opening in the stack.
- Gaskets freei
- Complete built in Inox Aisi 316
- Suction tube in reinforced PTFE
- Maximum temperature: 200°C
- Maximum exposition temperature 230°C.
Inox sampling head
The sampling head includes:
- Suction tube;
- Pitot tube “S”;
- Thermocouple type K with seal;
- Suction tube for gas analysis (ex.O2).
Inox extension tube
The extension tube is completely built in inox stainless steel and includes the polarised joint.
The standard extension tube is 1.5 meter long and its diam. is 60 mm, but on request also different length are available.
Umbilical Cabe
The umbilical cable assembles the tubes and the thermocouple cable coming from the sampling head in one sheath. It`s provided with quick connectors on the Pitot differential pressure tube and on the gas analysis tube. The suction tube in reinforced PTFE and is equipped with a cone shaped joint with metal seal connector.
Slide and Lock Device
The slide and lock device incorporates a special flange plate that allows the joint of any type of flange as long as the distance between the holes (dimension "A") is between 160-220 mm.
The mounting of the probes with this slide and lock device requires a flange plate and a 4" nozzle welded on the stack. The insert of the probe with its filter hoder and Pitot tube, may be done with the slide and lock device bolted at the stack.
Length of Umbilical cable / P/N
- 7 meters AC99-097-0020SP
- 9 meters AC99-097-0021SP
Length of PTFE suction tube / P/N
- 7 meters AC99-097-0025SP
- 9 meters AC99-097-0026SP
Slide and lock device P/N AC99-097-0030SP
The slide and lock device incorporates a special flange plate that allows the joint of any type of flange as long as the distance between the holes (dimension "A") is between 160-220 mm.
The mounting of the probes with this slide and lock device requires a flange plate and a 4" nozzle welded on the stack. The insert of the probe with its filter hoder and Pitot tube, may be done with the slide and lock device bolted at the stack.
