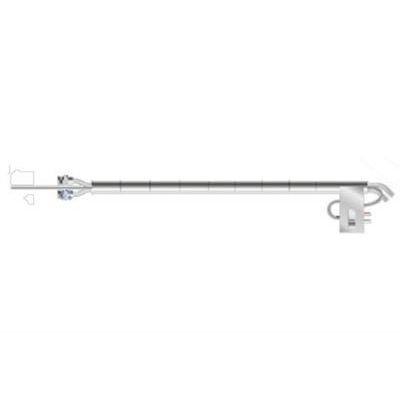

Dividable Monotube Isokinetic Probe - Model EN13284-1 -TCR Tecora
The dividable monotube probes can be used in that application where it is not possible or not convenient to use an integrated probe. They are developed in conformity with the “Determination of dust concentrations” according to UNI EN 13284-1. It is also compatible with all TCR Tecora filter holder device.The connection and the extension tubes are the same ones used for the curved probe (product data N. 1.100.01).
- Completely built in stainless steel Aisi 316
- Conformity with UNI EN 13284-1 Norm
- Compatible with all TCR Tecora filtering device.
The sampling tube is equipped with a metal - metal connec-tion for the filter holder assembling. It is provided with a hose-barb and a comfortable traverse handle, useful to recognize from the outside the probe’s direction.Length of the probe: 1000 mm.

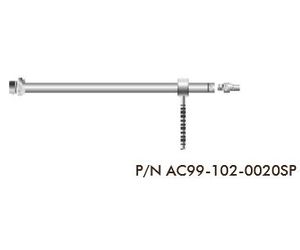

To allow a complete inspection also in elevated diameter ducts, there are extendible tubes available.One can be connected to another and fixed directly to the curved probe.Length of the probe: 1000mm.

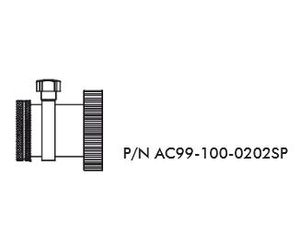

Slide and Lock Device

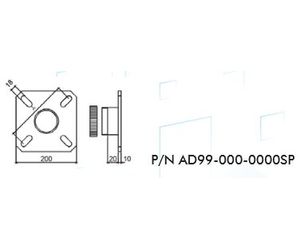

To fix the probe to the stack, incorporates a locking ring to compatible with the Universal flange.
The universal flange allow the connection to 4”(DN 100) flange.
