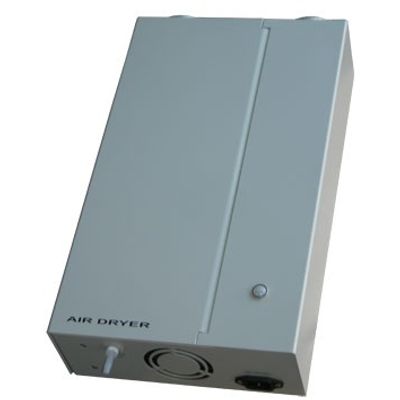

AZCO - Model VMD-30 -Wall Mountable Air Dryer Unit
The VMD-30 is a wall mountable Air dryer unit. It can supply up to 30 l/min of dry air under normal conditions. The VMD-30 is used to supply a dry air source for as many as two VMUS-8 Ozone Generators. This is ideal if an application using smaller units where expansion is being considered, or for larger units.
Most popular related searches
air dryer
ozone generator
ozone generation
flow meter
process gas
ambient air
air pump
ozonation
air conditioning
process air
- 30 l/min of dry air
- Compact Size
- Wall Mountable
- Easy to Use
- Powder coated Al. Cabinet
General: (E models)
- Voltage [VAC, 50/60Hz]: 100-120
- Power Consumption [W]: Max. 250
- Ambient Temperature [°C]: 2 to 40
- Relative Humidity [%]: 92
- Mass [kg]: 7.2
- Dimensions [LxWxH][mm]: 453 x 260 x 100
- Installation: N/A
- Warranty: 3 Year
Ozone:
- Generation Process: N/A
- Process Gas [bar]: Ambient air ±0.36
- Production On Oxygen: N/A
Options:
- Internal Air Pump: N/A
- Adjustable Output: N/A
- Interlock: N/A
- Flow Meter: N/A
- Oxygen Ready: N/A
- Vacuum Switch: N/A
- Built-in Air Dryer: N/A
Safety:
- CSA File #:
- ETL File # [Canadian & US]:
- UL File #:
