AZCO - Model VMUS-K - Wall Mountable ...

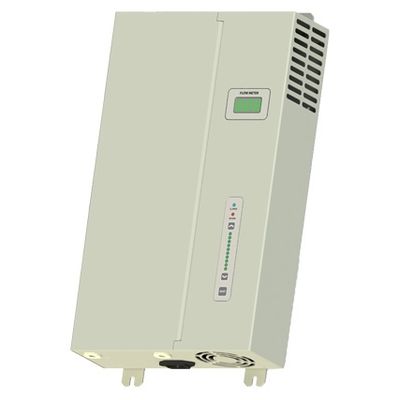

AZCO - Model VMUS-K -Wall Mountable Ozone Generator

The VMUS-K is a wall mountable Ozone generator which produces up to 4g/hr of ozone @ 6l/min of dry. This unit is typically used in small water bottling plants, self contained site remediation systems, and air systems for small commercial buildings.

Most popular related searches

ozone generator

ozone generation

site remediation system

~4g/hr Output
Wall mountable
Standard flow meter
Easy to install and operate
Powder coated Al. cabinet

General: (E models)

Voltage [VAC, 50/60Hz]: 100-240VAC 50/60HZ
Power Consumption [W]: ~104
Ambient Temperature [°C]: 2 to 40
Relative Humidity [%]: 92%
Mass [kg]: 3.5
Dimensions [LxWxH][mm]: 434 x 258 x 90
Installation: N/A
Warranty: 3 Year

Ozone:

Generation Process: Pulse, Corona Discharge
Process Gas [bar]: Maximum pressure ±0.36
Production On Dryair: ~4g/hr

Options:

Internal Air Pump: O
Adjustable Output: S
Interlock: O
Flow Meter: S
Oxygen Ready: S
Vacuum Switch: S
Built-in Air Dryer: N/A

Safety:

CSA File #:
ETL File # [Canadian & US]:
UL File #:

AZCO - Model VMUS-K -Wall Mountable Ozone Generator

Key Features

Specifications
