AZCO Industries Limited

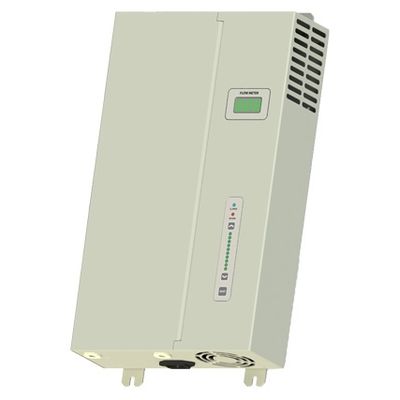

AZCO - Model VMUS-DG -Wall Mountable Ozone Generator
The VMUS-DG is a wall mountable Ozone generator which produces up to 13 g/hr of ozone @ 6 l/min of oxygen. This unit utilizes our double quartz technology for ultra pure and high concentration applications. The double quartz technology is tuned specifically for oxygen and thus should only be run with an oxygen concentrator or from an oxygen tank.
Most popular related searches
ozone generator
ozone generation
flow meter
ozonation
oxygen concentrator
process gas oxygen
air dryer
corona discharge
process gas
air pump
- ~20 g/hr Output
- Double Quartz Technology
- Wall mountable
- Standard flow meter
- Easy to install and operate
- Powder coated Al. cabinet
General
- Voltage [VAC, 50/60Hz]: 100-120 (200-240
- Power Consumption [W]: 310
- Ambient Temperature [°C]: 2 to 40
- Relative Humidity [%]: 92
- Mass [kg]: 7.5 (12)
- Dimensions [LxWxH][mm]: 522 x 315 x 180
- Installation: N/A
- Warranty: 3 year
Ozone
- Generation Process: Pulse, Corona Discharge
- Process Gas [bar]: Oxygen only. Maximum pressure ±0.36
- Production On Oxygen: ~20 g/hr
Options
- Internal Air Pump: N/A
- Adjustable Output: N/A
- Interlock: O
- Flow Meter: S
- Oxygen Ready: S
- Vacuum Switch: N/A
- Built-in Air Dryer: N/A
Safety
- CSA File #
- ETL File # [Canadian & US]
- UL File #
