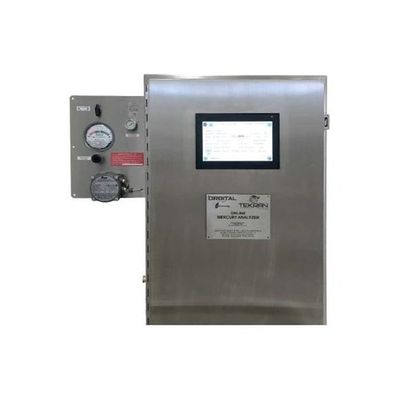

Tekran - Model 2537Xi-NG -With Purge Cabinet

SHARE

Key Features: Class 1 Div 2 cabinet for use in hazardous environments. ASTM-6350 and ISO-6978 method compliant. Dual-bed gold sample trap design avoids analytical gold cartridge exposure to complex sample gas. Multiple automated QA routines validate method performance. Range of 1 ng/m3 to 2 mg/m3. Network enabled for remote operation. Cabinet integration and design by Tekran Partner: Orbital Gas Solutions.

Most popular related searches
mass flow control
natural gas mercury
flow control
mass flow
sample collection
sample gas
total mercury in gas
flow calibration
dual bed oxygen concentrator
instrument enclosure
  • Instrument touch screen interface does not require PC for operation
  • Local data storage, front panel USB port, and remote access for data retrieval
  • Additional functionality via optional s/w plugins (i.e. valve multiplexer)
  • Digital lamp and detector electronics w/ remote control and display
  • Low dead-volume valve assemblies with inert PEEK surfaces
  • Integrated sample and breakthrough trap assessment with option for single or combined heating to provide measurement and QA assessment options
  • Constant power heater control insures consistent temperature over heater life
  • Unique design isolates analytical cartridge from complex natural gas matrix; the cartridge is only exposed to carrier gas for optimal performance and robustness
  • Integrated permeation source allows assessment of trapping efficiency, matrix effects, and routine automated calibration
  • Instrument and enclosure design allows free-flowing inert purge gas exchange throughout instrument to improve overall safety rating
  • Simple access to serviceable components like cuvette and gold cartridges
  • Analyte: Total gaseous mercury in natural gas
  • Principle: Dual-bed gold pre-concentration with CVAFS detection.
  • Range: 1.0 ng/m3 to 2.0 mg/m3
  • Sampling Cycle: 2.0 – 60 min
  • Sampling: Alternating sample collection and analysis cycles
  • Data Outputs: Network (1), USB Device (1), USB Host (3), RS-485 (2), RS-232 (1), Analog Chart (2)
  • Sample Flow: 0.1 - 0.5 L/min
  • Flow Totalization: Precision mass flow controller (MFC)
  • Carrier Gas: Argon or Nitrogen
  • Consumption: ~125 L/day (full size tank lasts 2 to 3 months)
  • Carrier Setpoint: Precision mass flow controller provides dynamic control of carrier flow during each desorption cycle. MFC delivers superior flow stability and accuracy.
  • Calibration: Automatic multi-point calibration using internal permeation source. Manual injection port also provided
  • Physical: Self-contained with maximum internal and external case venting. 19” rack mountable (4U height)
