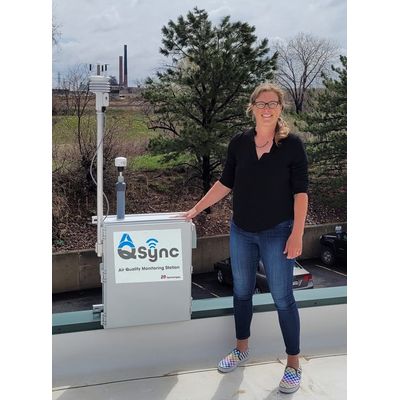

The Best of the Best in One Package: The AQSync Air Quality Monitoring Station. FEM-quality absorbance measurements for O₃, NO₂, and NO. NDIR absorbance for CO₂. Optical particle counter with sheath flow and heated inlet for PM₁, PM_2.5, and PM₁₀. Amperometry for CO. Sonic anemometry and weather data. Data access and instrument control via the Cloud. Power-stingy requirements enable options for powering with battery or solar panel.

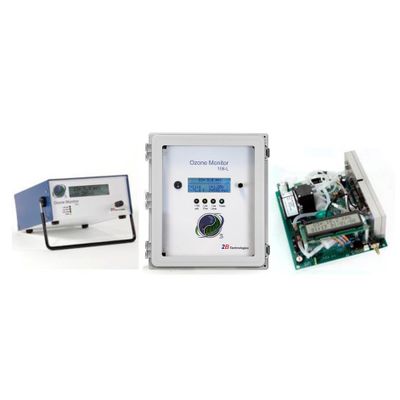

The Model 106 series of ozone monitors was designed specifically for the industrial ozone industry to cover four different ozone concentration ranges by varying the optical path length.  The ranges are: -L (low, 0-100 ppm); -M (medium, 0-1,000 ppm); -MH (medium high, 0-10,000 ppm, 0-1 vol%) and -H (0-20 wt%, 0-14 vol%).  The Model 106 series is designed as an "ozone monitor on a board" in which nearly all of the components are mounted directly to the printed circuit board with very few wire connections, making these instruments highly robust and very easy to service.

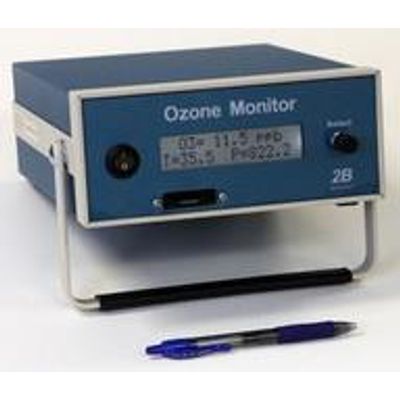

The 2B Technologies Model 202 Ozone Monitor™ is designed to enable accurate and precise measurements of ozone ranging from low ppb (precision of ~1.5 ppb) up to 250,000 ppb (0-250 ppm) based on the well-established technique of absorption of UV light at 254 nm.  The Model 202 Ozone Monitor™ is lightweight (5.5 lb., 2.5 kg.) and has a low power consumption (12V DC, 0.60 amp, 7.2 watt) relative to conventional instruments and is therefore well suited for applications such as:

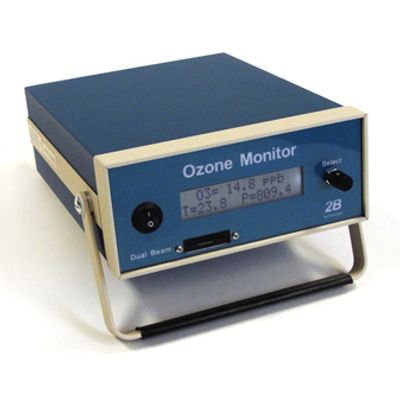

The Model 205 Dual Beam Ozone Monitor makes use of two detection cells to improve precision, baseline stability, and response time.  In the Dual Beam instrument, UV light intensity measurements Io (ozone-scrubbed air) and I (unscrubbed air) are made simultaneously. Combined with other improvements, this made it possible to reduce the time between ozone measurements to 2 seconds, making our instrument the fastest UV-based ozone monitor on the market, while still retaining the small size, weight, and power requirements of our popular Model 202 Ozone Monitor.  Fast measurements are especially desirable for aircraft and balloon measurements where high spatial resolution is needed.  For 10-s averaging, a precision of 1.0 ppb is achieved.  Alternatively, one can choose to average more points internally to obtain even better precision.

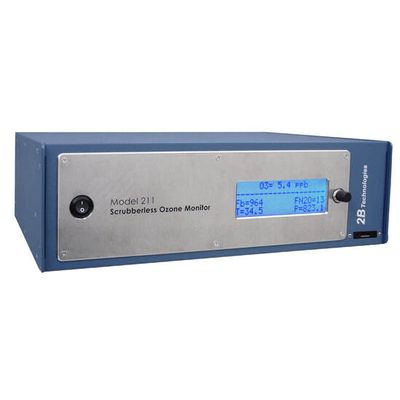

The new Model 211 Scrubberless Ozone Monitor uses the proven ultraviolet (UV) absorption method in combination with our patented (US Patent No. 8,395,776 B2) gas-phase scrubber technology to measure ozone virtually free of interferences. The instrument is ideally suited for measurements of ozone in heavily polluted air where interference is likely from particulates, mercury, or VOCs. The Model 211 combines the stability of our proven dual beam ozone monitors with our selective scrubber technology to provide accurate ozone measurements in the most polluted air. The enhanced optical path length of 30 cm provides a precision of better than 0.5 ppb for 10-second measurements, and the instrument can output new ozone measurements as often as every 2 seconds. The Model 211 Scrubberless Ozone Monitor has been designated by the EPA as a Federal Equivalent Method (FEM): EQOA–0514–215.

The new Model 211-G Ozone Monitor uses the proven ultraviolet (UV) absorption method in combination with our patented heated graphite scrubber technology (U.S. Patent No. 10,295,517) to measure ozone virtually free of interferences. The instrument is ideally suited for measurements of ozone in heavily polluted air where interferences are likely from particulates, mercury, and/or VOCs.

2B Tech has taken the next step in miniaturization of UV-based ozone monitors by developing the Personal Ozone Monitor or "POM". The basic POM unit has dimensions of 4 x 3 x 1.5 inches and weighs only 0.8 lb / 1.0 lb without/with battery (360 g / 450 g ). It has a built in GPS so that ozone measurements may be logged continuously along with geographic location. By folding the optical path in the shape of a "U," it was possible to achieve the same path length in the POM as in the Models 202, 205, and 106-L and thus have similar precision and accuracy (~1.5 ppb). The POM has been designated by the US EPA as a Federal Equivalent Method (FEM) for ozone: EQOA–0815–227.

This manual covers the Model 106-LFTFlow Through Ozone Monitor used for measurement of Lowozone concentrationsin air over a wide dynamic range extending froma few parts per billion by volume (ppb) toan upper limit of100parts-per-million by volume (ppm). New editions of this manual are complete revisions that reflect updates to the instrument itself, as well as clarifications, additions, and other modifications of the text.

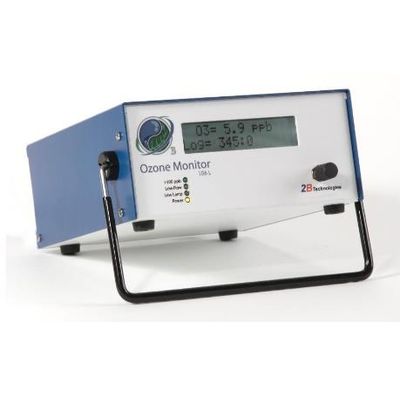

For industrial ozone applications, 2B Tech offers the Model 106-L, 106-M, 106-MH and 106-H Ozone Monitors, where L, M, MH and H refer to Low (0-100 ppm), Medium (0-1,000 ppm)06-, Medium-High (0-10,000 ppm) and High (0-20 wt%) ozone concentrations, respectively. These instruments have different optical path lengths in order to accommodate an extremely wide range of ozone concentrations, spanning more than eight orders of magnitude. Additionally, the Model 106-H was designed with a flow-through path that can be pressurized to up to 50 psi for in-line measurements with ozone generators. All four models are available in either a standard enclosure or Industrial enclosure.  Configurations for multi-channel sampling are available for Models 106-L, 106-M, and 106-MH.

For those who need to integrate their ozone monitor into a separate system such as an air pollution monitoring package, we offer the Model OEM-106 series where the entire ozone monitor is mounted on a single printed circuit board.  The liquid crystal display and power switch may be detached and mounted outside the customer`s custom enclosure.  With the exception of our Personal Ozone Monitor (POM), this is the most compact UV-absorbance-based ozone monitor available on the market.  The Model OEM-106-L has been designated by the EPA as a Federal Equivalent Method (FEM): EQOA–0914–218. Choice of four different optical benches allows for four different ozone concentration ranges as summarized in the following table.
