Axetris AG products

Mass Flow Devices

Axetris - Model Standalone - Mass Flow Controller

MEMS-based standalone mass flow controller (MFC) designed for OEM applications, where shielding and IP40 protection are required. The platinum-based MEMS chip technology guarantees excellent stability and repeatability over the whole flow range. Due to their unmatched dynamic range and multi-gas capability, Axetris MFC modules can replace several conventional mass flow controllers with a single unit. The compact and robust design makes it also an ideal choice for portable applications as for example leak testing devices or any other handheld systems.

Axetris - Model OEM - Mass Flow Controller

The Axetris mass flow controller OEM-module (MFC) with platinum-based MEMS chip technology guarantees excellent stability and repeatability over the whole flow range. Due to their unmatched dynamic range and multi-gas capability, the MFC modules can replace several conventional mass flow controllers with a single unit. Target gases for this module are N2, Air, O2, CO2, Ar, He, and H2. The compact and robust design makes it also an ideal choice for portable applications like for example leak testing devices or handheld systems.

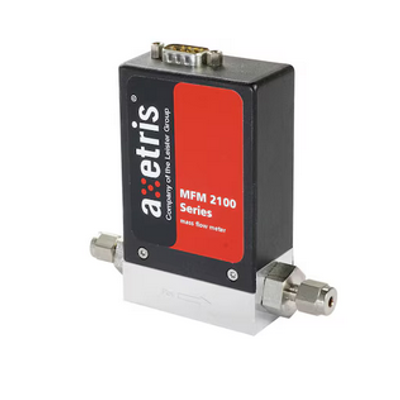

Axetris - Model OEM - Mass Flow Meter

The Axetris mass flow meter OEM-module (MFM) offers outstanding value to the customer. Platinum-based MEMS chip technology guarantees excellent stability and repeatability over the whole flow range. The high speed of MEMS technology combined with smart software processing along with rigid and robust packaging makes the MFM series an ideal choice for applications requiring small size, high stability, and fast response time. The product is currently available for communications over RS232 TTL or EIA, RS485 half duplex or full duplex and with analog signal (0-5V or 4-20mA).

Axetris - Model Standalone - Mass Flow Meter

The MEMS-based standalone mass flow meter (MFM) by Axetris is designed for OEM applications requiring both shielding and IP40 protection. Platinum-based MEMS chip technology guarantees excellent stability and repeatability over the whole flow range. In addition, the high speed of MEMS technology combined with smart software processing makes the MFM Standalone series an ideal choice for applications requiring small size, high stability, and fast response time. On top of that, the MFM standalone series is an ideal choice for all applications that require small sizes, high stability and quick response times due to its highspeed MEMS-technology and intelligent softwareprocessing. The rigid and robust casing of the compact mass flow meter adds to that. The product comes in various variations communicating with RS232 EIA, RS485 half or full duplex, PROFINET or EtherCAT.
