Axetris AG products

Axetris - Mass Flow Meters and Controllers

MFD Plus+ Full Scale Flow now extended to 20,000 seem. The trusted Axetris Plus range of mass flow meters and controllers are now available for flow control upto 20,000 seem (20 slpm). The Axetris MFD Plus range of mass flow meters and controllers provide an unmatched dynamic range of better than 2500:1. The new innovation from Axetris allows you to use a single mass flow device over a wide range of flow rates, helping you save costs, while taking the complexity out of design and logistics. The Plus+ range of mass flow devices come in surprisingly compact sizes, enabling compact designs.

Infrared Sources

Axetris - Powerfull and Scalable Broadband Infrared Source

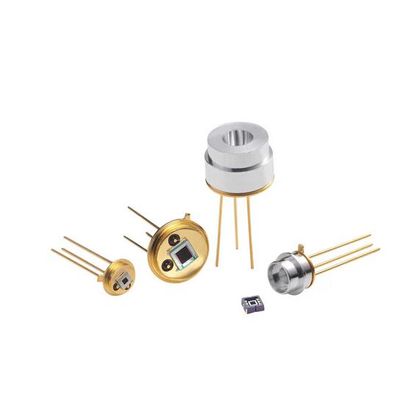

The Axetris EMIRS200 infrared source is available in different versions and is suitable for various sensor principles: For example, non-dispersive infrared spectroscopy (NDIR), photoacoustic spectroscopy (PAS), and attenuated total reflection spectroscopy (ATR). Common applications are environmental measurement, medical diagnostics, and safety applications in industry. The collimation properties of Axetris infrared sources are well-suited to many optical designs and detector characteristics in terms of the angular distribution of radiation. Their compact size makes them easy to integrate into most solutions. EMIRS200 infrared sources are available and compatible with a variety of broadband optical filters.

Axetris - Small and Scalable Broadband Infrared Sources

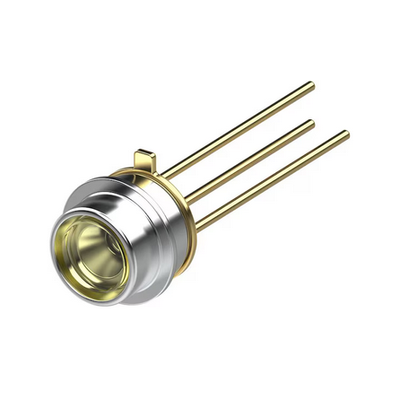

Axetris EMIRS50 infrared sources are optimized for miniaturized sensor technology. Like non-dispersive infrared (NDIR) sensors, photoacoustic spectroscopy (PAS) or attenuated total reflection (ATR) spectroscopy. The sources are particularly well-suited to size-optimized and battery-powered sensor solutions in medicine as well as in numerous environmental and industrial applications. Thanks to the low thermal mass of the chip, modulation frequencies of 100 Hz are guaranteed, allowing high sampling rates. The efficient collimation of the available reflectors is achieved by optimized Winston-Cone geometry and mirror-like surfaces. As a result, Axetris EMIRS50 infrared sources offer maximum efficiency.

Axetris - Matching Infrared Sources

The Axetris IRS LabKit is perfectly suited for testing and evaluating EMIRS infrared sources. Multiple sources can be purchased and characterized with the LabKit. This allows for quick testing when electronics are not yet available. In combination with the detector, the optimal drive parameters for the entire EMIRS portfolio can be selected. Continuous data recording allows analysis and optimization of the IR source`s behaviour and the over. Using the LabKit allows for a more efficient development phase prior to the market launch. This saves valuable time even before the prototype is built.

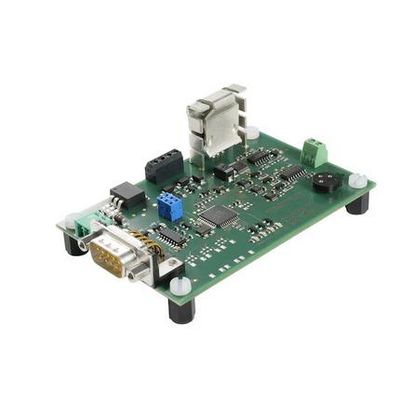

Axetris - Power Control Board

The Axetris Power Control board is available to drive both the EMIRS200 and EMIRS50 infrared sources and is ideal for gas sensor or gas detection applications. Whether being used for rapid prototyping or for low- to mid-volume manufacturing, the control board can easily be accomodated in even the most compact gas sensor or gas detection designs, due to its small size. The board drives the Axetris EMIRS source in the recommended “power control mode“ optimizing the performance of the selected IR source leading to stable performance coupled with long lifetime.

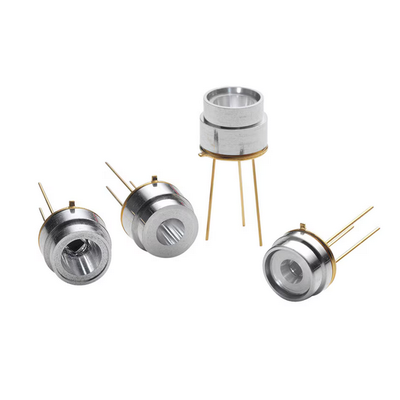

Axetris - Customized Infrared Sources

Axetris offers customized versions of the EMIRS50 infrared source. The housing, reflector design, and broadband filters are configurable to meet specific product requirements. The size and collimation characteristics of the reflector can be matched to the absorption cell and detector configuration. This results in a maximized optical signal and optimized angular distribution of the radiation. We also support efficient and economical implementation through ray-tracing simulations and finite element analysis.

Axetris - Customized Infrared Sources

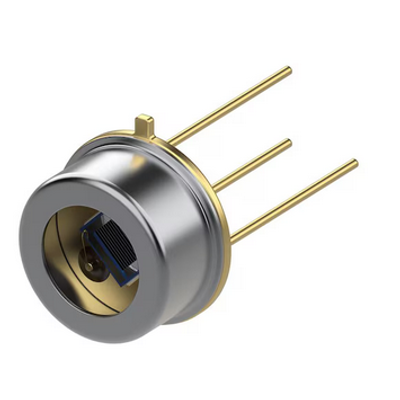

The Axetris EMIRS200 infrared source is available in customized versions. Our application specialists support you with the adaption of our tried and tested technology to your individual OEM requirements. As a result, installation-relevant specifications are met and optimal coupling of the optical signal is achieved. Customer-specific solutions are built on a broad, modular product portfolio of implemented components and adapted and extended according to individual requirements.

Mass Flow Devices

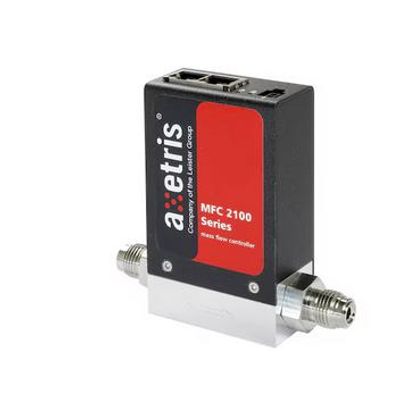

Axetris - Mass Flow Controller

MEMS-based standalone mass flow controller (MFC) designed for OEM applications, where shielding and IP40 protection are required. The platinum-based MEMS chip technology guarantees excellent stability and repeatability over the whole flow range. Due to their unmatched dynamic range and multi-gas capability, Axetris MFC modules can replace several conventional mass flow controllers with a single unit. The compact and robust design makes it also an ideal choice for portable applications as for example leak testing devices or any other handheld systems.

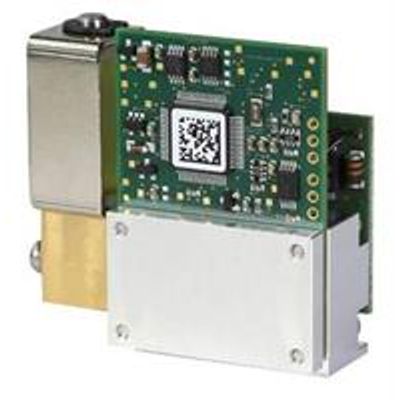

Axetris - Mass Flow Controller

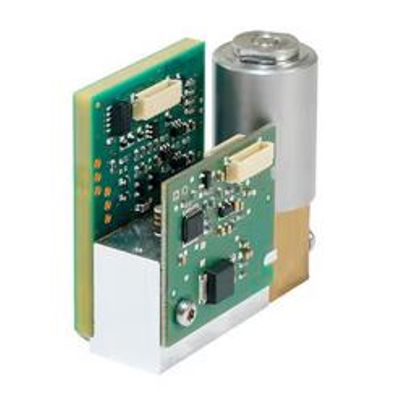

The Axetris mass flow controller OEM-module (MFC) with platinum-based MEMS chip technology guarantees excellent stability and repeatability over the whole flow range. Due to their unmatched dynamic range and multi-gas capability, the MFC modules can replace several conventional mass flow controllers with a single unit. Target gases for this module are N2, Air, O2, CO2, Ar, He, and H2. The compact and robust design makes it also an ideal choice for portable applications like for example leak testing devices or handheld systems.

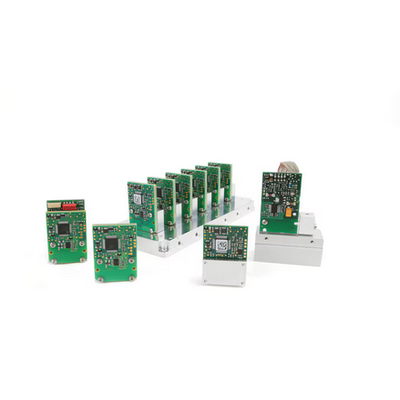

Axetris - Mass Flow Meter

The Axetris mass flow meter OEM-module (MFM) offers outstanding value to the customer. Platinum-based MEMS chip technology guarantees excellent stability and repeatability over the whole flow range. The high speed of MEMS technology combined with smart software processing along with rigid and robust packaging makes the MFM series an ideal choice for applications requiring small size, high stability, and fast response time. The product is currently available for communications over RS232 TTL or EIA, RS485 half duplex or full duplex and with analog signal (0-5V or 4-20mA).
