SIMOP France, SAS products

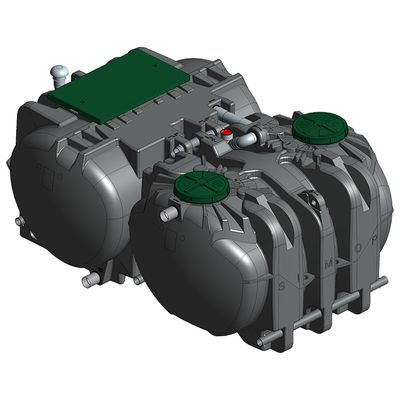

The systems in the BIONUT® range are designed to treat domestic wastewater from single-family homes or groups of dwellings. These systems can cope with the intermittent operation of second homes and require no energy input. The treatment is based on the compact biological filter technique, which reproduces the natural purification of water through the soil, and consists of an all-water tank for pre-treatment of the effluent and a compact filter made from hazelnut shells for biological treatment.

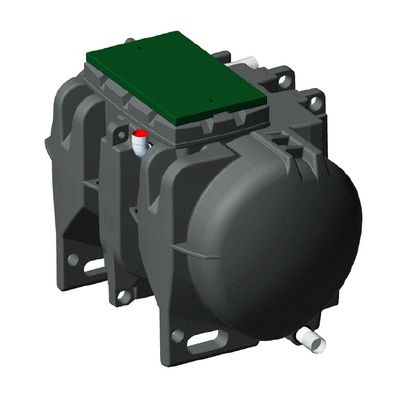

The lines in the BIONUT® range are lines for treating domestic wastewater from individual homes or groups of dwellings. These devices support the intermittent operation of second homes and do not require any energy input. The treatment is based on the biological compact filter technique which reproduces the natural purification of water through the soil. These sectors are made up of an all-water pit ensuring the pretreatment of the effluent and a compact filter made from hazelnut shells ensuring the biological treatment.

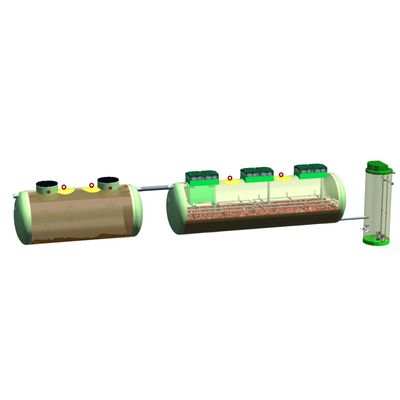

The filters of the BIONUT2 MAX range are designed for the treatment of domestic wastewater, within the framework of grouped non-collective sanitation or small collective sanitation of 21 to 200 population equivalents. These devices support intermittent operation and do not require any power supply. The treatment is based on the biological compact filter technique which reproduces the natural purification of water through the soil. These systems are composed of an all-water tank ensuring the pretreatment of the effluent and a compact filter based on hazelnut shells ensuring the biological treatment.

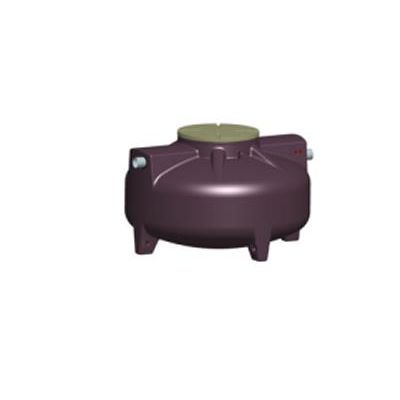

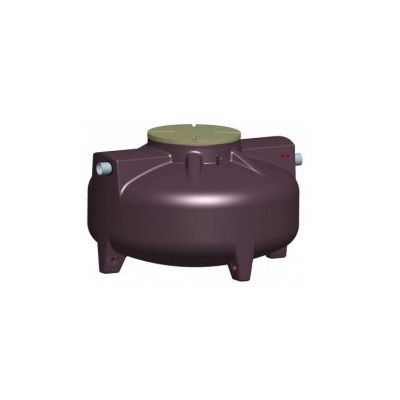

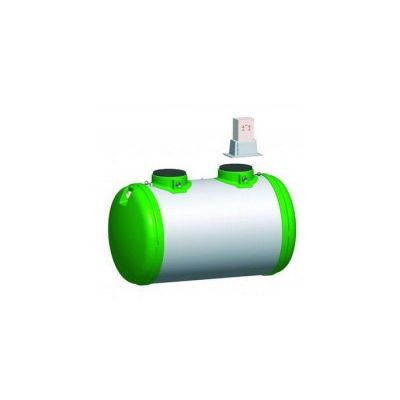

A hydrocarbon separator is intended to separate and store the free hydrocarbons contained in the runoff. The scrubber part of the device makes it possible to trap suspended matter (sands, gravel ...). These bypass-free hydrocarbon separators equipped with a sludge trap are ideal for treating water coming from covered car parks, petrol stations, garages. For washing areas, provide a complementary V200 stripper to obtain a volume of V300. Recall : The oil level alarm is mandatory as additional equipment.

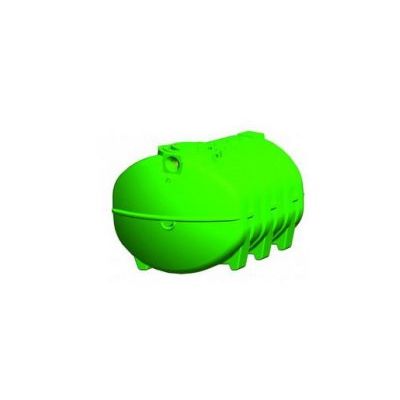

INP-IBH-INH all-water tanks from 3 to 8 m3 with integrated pre-filter - in PE. An all-water pit is a pre-treatment structure intended to retain the settling materials present in waste water from a home. Domestic waste water are the water valves (WC, ...) and grey water (room baths, kitchens, laundries). A complete purification system consists of an all-water pit and a treatment system annex (sand lter, spreading network, compact filter ZEOMOP or BIONUT ..).

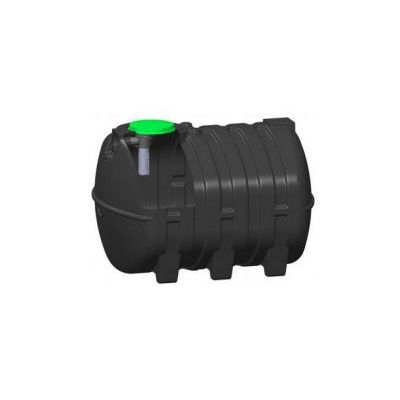

An all-water tank is a device designed to retain settling matters in domestic wastewater (wastewater from toilets, bathrooms, kitchens, laundries, etc). A complete water treatment system includes an all-water tank and a waste disposal system (sand filter, spreading system, etc.). The pre filter integrated into the all-water tank is located at the output and filters the pretreated effluent. This pre filter warns the user that the all-water tank needs draining and protects the treatment device downstream (sand filter, treatment system) against premature clogging by retaining non-settled particles. INPR-IBR-INR reinforced water tanks with built-in pre-filter from 3 to 8m3 made of polyethylene - for difficult ground or laying without slab with a backfill height of 600mm.

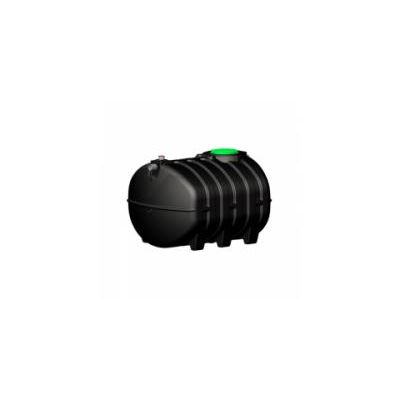

All-water thanks is a pre-treatment device disgned to catch settleable matter which are present in household waste water from a house. The household waste water are refuse water (WC,…) and gray water (kitchen, bathroom, utility room). A totality purification sector is established by a all-waters thak and a appendix pre-treatment system (drained filte, spreading system..). The incorporated pre-filter is localized at the exit of the all-waters tank. Reliable and secured, it allows to protect against a prematured clogging of downstream pre-treatment system (drained filte, spreading system..) by holding the not settled particles. His maintenance and manipulation are simple. To avoid all risks of float discharge during the maintenance visits, the system close automatically the exit towards the downstream pre-treament device.

The OXYMOP are water treatment plants with activated sludge developped in GRP tanks. They are composed by an aeration basin and a clarifier installated downstream from a primary decanter.
