Solinst Canada Ltd. products
Data Loggers & Telemetry

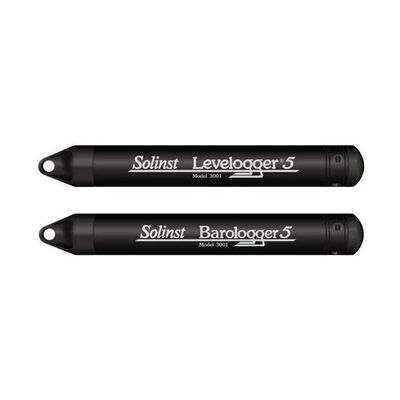

Solinst - Highly Accurate Water Level and Temperature Datalogger
The 3001 Levelogger® 5 is a highly accurate water level and temperature datalogger. It is ideal for recording water levels in monitoring and production wells, boreholes, lakes, rivers, tanks, etc. It has an accuracy of 0.05% FS and memory for 150,000 sets of readings. The datalogger, 10-year battery, Hastelloy® pressure sensor and temperature sensor are factory-sealed in a 22 mm x 160 mm (7/8" x 6.3") housing with a corrosion-resistant coating baked on using polymerization technology. The sealed design makes maintenance and cleaning a snap, and offers protection from power surges caused by pumps or lightning. User-defined schedule, linear, and event-based sampling are options. The Barologger 5 and the data wizard offer the most accurate and easy method to account for barometric pressure.
Solinst - Water Level Dataloggers
For important projects with a tight budget, Levelogger 5 Junior provides a cost-effective solution for continuous water level and temperature measurement. It is simple to program with user-friendly software, and easy to deploy with Direct Read Cables or wireline/Kevlar cord and the Levelogger Locking Well Cap. It features a Hastelloy pressure sensor, battery that lasts up to 5 years, and memory for 75,000 sets of readings. Accuracy is 0.1% FS with lifetime calibration. Levelogger 5 Junior is SDI-12 compatible, as is the higher accuracy Levelogger 5.

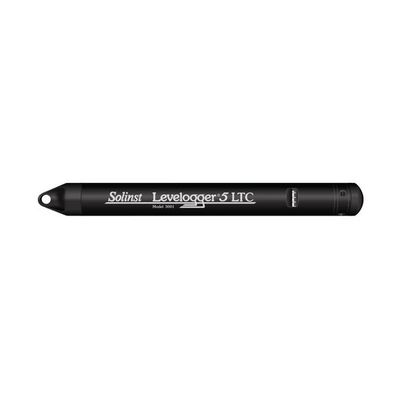

Solinst - Level, Temperature, Conductivity Datalogger
The Levelogger 5 LTC (Level, Temperature, Conductivity) combines a datalogger that stores 100,000 sets of readings, 8-year battery, pressure transducer, and temperature and conductivity sensors within a sealed 22 mm x 208 mm (7/8" x 8.2") stainless steel body with a PFAS-free, corrosion-resistant PTFE coating (inside and out) baked on using polymerization technology.

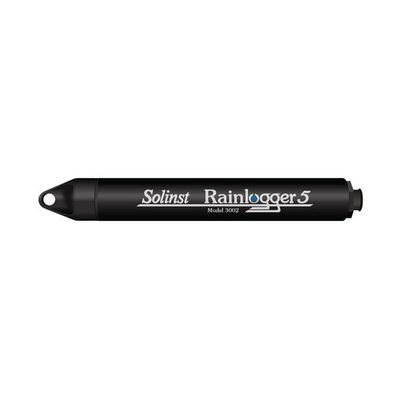

Solinst - Rain Gauge Dataloggers
The 3002 Rainlogger 5 is used with Levelogger Software and most standard tipping-bucket rain gauges to log rainfall events. It is excellent for use along side Leveloggers to allow correlation between precipitation events and changes in groundwater levels, and is excellent for measuring local precipitation, larger scale remote monitoring of watersheds, and localized stormwater event monitoring. The Rainlogger 5 features a durable ABS housing that provides EDS protection when recording in the field. It is designed to count the tips of a connected tipping-bucket rain gauge, and output the total amount of rainfall per time period. The Rainlogger 5 offers long-term reliability with a battery that lasts up to10 years and a memory for 100,000 time-stamped readings.
Solinst - LevelVent 5 - Vented Water Level Data Logger
The LevelVent 5 uses a vented pressure transducer to provide accurate datalogging (0.05% FS) of water levels that are automatically compensated for barometric effects. The LevelVent 5 logger contains a Hastelloy pressure sensor, temperature sensor, 10-year battery, and memory for 150,000 sets of readings within a 22 mm x 173 mm (7/8" x 6.8") corrosion-resistant housing. A Vented Cable connects the downhole logger to a compact Wellhead that seats inside a Solinst 2" Well Cap Assembly. Custom Vented Cables are available to 500 ft. For permanent moisture protection the Wellhead and logger contain built-in desiccants and hydrophobic filters. The Wellhead easily connects with Solinst software and accessories.
Solinst - Vented Water Level Datalogger
The AquaVent 5 uses the same vented pressure transducer and Vented Cable as the LevelVent 5; however, the batteries are user-replaceable and located in the AquaVent 5 Wellhead at surface. The AquaVent 5 Wellhead provides options to communicate with Solinst Levelogger Software and accessories as well as third party equipment using SDI-12 or MODBUS protocols. The Wellhead fits conveniently onto a 50 mm (2") well casing. Permanent desiccants and hydrophobic filters protect the AquaVent 5 from moisture.

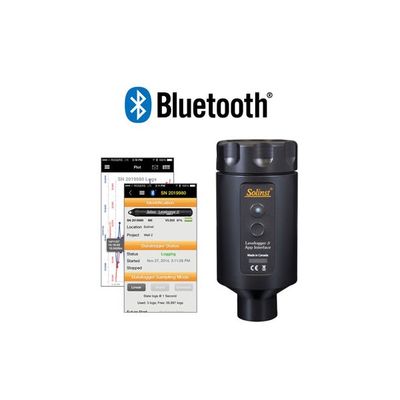

Solinst - Levelogger 5 App Interface
The Solinst Levelogger App and Levelogger 5 App Interface can be used to program, view, or download data from a Bluetooth® connected Solinst datalogger on your iOS or Android™ smart device. The Solinst Levelogger App is available free on the App StoreSM and on Google Play™. The App allows you to e-mail and share data logs right from your smart device. To communicate with the Solinst Levelogger App, dataloggers are connected to the Levelogger App Interface, which provides a Bluetooth connection between your datalogger and smart device.

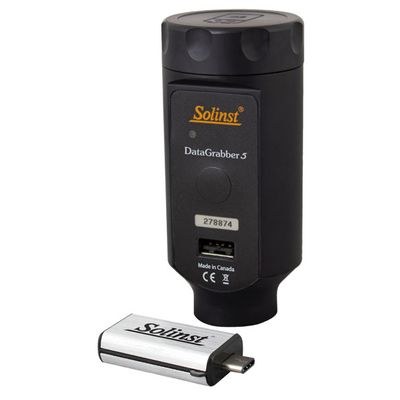

Solinst - DataGrabber 5
TThe DataGrabber 5 is a simple portable device that copies data from Solinst dataloggers in the field, to a USB flash drive key with an optional USB-C connection. The DataGrabber 5 connects to the top of a Direct Read Cable, or to the Levelogger using an Adaptor. Also connects with LevelVent 5 and AquaVent 5 vented water level dataloggers. Each DataGrabber comes with a Solinst 2GB USB flash drive key; the DataGrabber is also compatible with most other USB memory devices. When data is copied to the USB device, the data remains in the datalogger memory, and is not interrupted if it is still running. A convenient LED indicates when the data download is successful.
Solinst - LevelSender 5 Telemetry
Eliminate going to the field to download your Levelogger data. Quickly and easily add cellular telemetry to your Levelogger monitoring wells. The LevelSender is designed to connect to Direct Read Cables and Leveloggers, upgrading your current installation by adding cellular telemetry at an affordable price. The LevelSender is compact in design, and is simple to setup and maintain. Leverage your current Levelogger assets and increase your efficiency by adding a LevelSender.
