Van Essen Instruments B.V. products

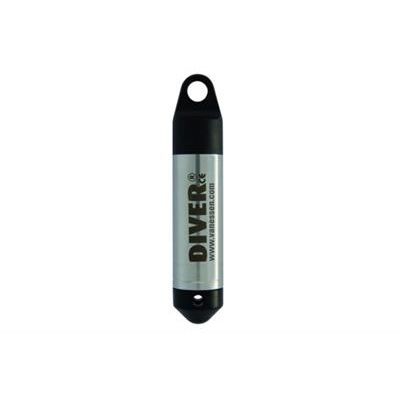

The TD-Diver is a submersible datalogger for long-term uninterrupted, real-time water level monitoring using a pressure sensor when submerged at a fixed level under the water surface. The pressure sensor measures the equivalent hydrostatic pressure of the water above the sensor diaphragm to calculate the total water depth. The Diver autonomously measures pressure and temperature and records them in its internal memory. The Diver is ideal for ground and surface water level applications.

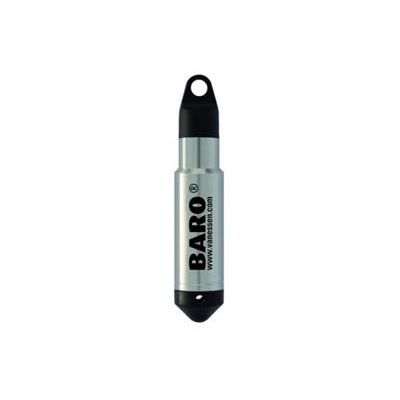

The Baro-Diver® is a datalogger for long-term uninterrupted, real-time atmospheric pressure monitoring. In addition, the Baro-Diver can monitor shallow water levels using a pressure sensor when submerged at a fixed level under the water surface. The pressure sensor measures the equivalent hydrostatic pressure of the water above the sensor diaphragm to calculate the total water depth. The Diver autonomously measures pressure and temperature and records them in its internal memory.

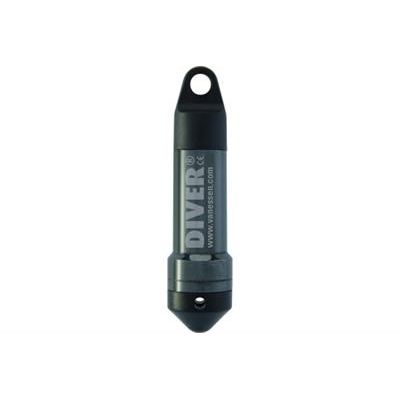

Measuring only 88 mm (3.46″) in length and 18 mm (0.71″) in diameter, the Micro-Diver is Van Essen’s smallest Diver. The Micro-Diver® is a submersible datalogger for long-term, uninterrupted, real-time water level monitoring using a pressure sensor when submerged at a fixed level under the water surface. The pressure sensor measures the equivalent hydrostatic pressure of the water above the sensor diaphragm to calculate the total water depth. The Diver autonomously measures pressure and temperature and records them in its internal memory. The Diver is ideal for ground and surface water level applications.

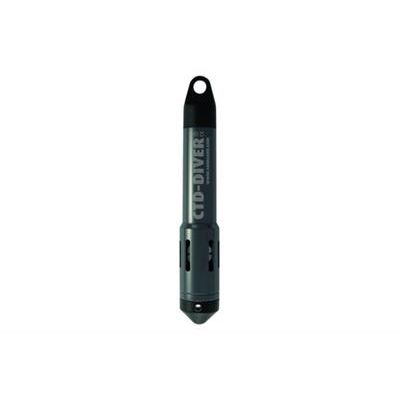

Where there is a need to monitor groundwater levels and salt water intrusion , injected wastewater, or contamination from chemical discharges and landfill sites, the CTD-Diver® with its 22 mm diameter rugged, corrosion proof ceramic (zirconium-oxide) housing, is the instrument of choice. The CTD-Diver is a submersible datalogger for long-term uninterrupted, real-time water level monitoring using a pressure sensor when submerged at a fixed level under the water surface. The pressure sensor measures the equivalent hydrostatic pressure of the water above the sensor diaphragm to calculate the total water depth. In addition, to a pressure sensor the CTD-Diver is also equipped with a 4-electrode conductivity sensor for measuring the true or specific electrical conductivity of the water. The Diver autonomously measures conductivity, pressure and temperature and records them in its internal memory. The Diver is ideal for ground and surface water level applications.

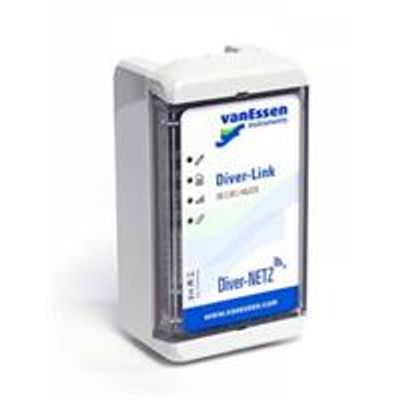

The Diver-Link is a complete telemetry solution. A complete remote monitoring system that integrates field instrumentation with wireless communication and data management to effectively manage (ground)water resources. The Diver-Link is suitable for the continuous long and short-term monitoring projects.

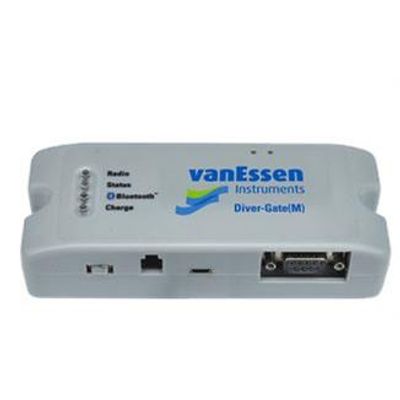

The Diver-Gate(M) is a portable low-power device that communicates wirelessly with the Diver-DXT to retrieve data from Diver dataloggers within a range of 500 meters. The Diver-Gate(M) connects to a laptop equipped with Diver-Office.

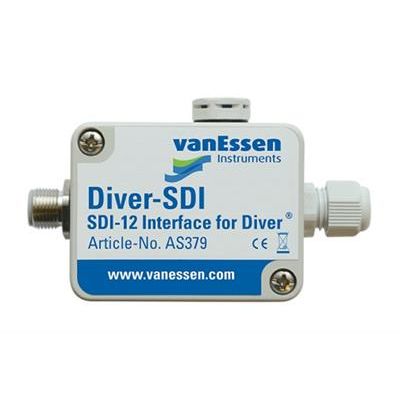

The Diver-SDI integrates Divers with SDI-12 remote monitoring systems. A typical SDI-12 system illustrated in the figure below. On one end the Diver-SDI is connected to the SDI-12 system through the 3-wire SDI-12 bus, which also include the power supply of 12 Volt. On the other end a Diver cable (AS2xxx) is attached to connect the Diver-SDI to a Diver. Diver cables up to a length of 500 meters (1,640 ft) can be used with the Diver-SDI.
