Sunco - Plug Diverter Valves

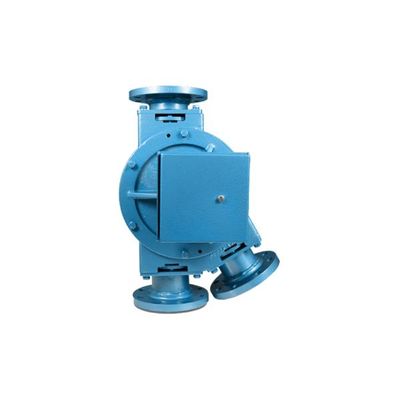

The Sunco Plug Diverter Valve is used on applications where a typical flap diverter valve cannot be used due to high pressures and/or abrasive materials. The Plug Diverter is ideal for high vacuum conveying systems or applications were leakage cannot be tolerated. The Plug Diverter consists of a robust cast body which houses a cast plug between a pair of end covers. The material being handled passes from one line through a tunnel within the plug to either of the two outlet lines. The material stream is diverted to the selected outlet by rotating the plug through 150⁰. Rotation is alternately clockwise and counter-clockwise and is achieve by means of a double-acting torque actuator. To prevent cross contamination of product air to the chamber or dominant leg, sealing is achieved by means of a PTFE spring-loaded gland arrangement, which is adjustable and replaceable.
