Elgin Separation Solutions products

The linear motion horizontal screen is the mainstay of the many screens used in coal prep plants and lends itself toward sizing when the cut point is below 1½”. It is also used in magnetite recovery and dewatering.

When you need reliable scalping, sizing, desliming, or rinsing of processed materials, trust the heavy-duty Tabor Incline (TI) screen. Available in single, double, and triple deck configurations, Elgin’s vibrating screens deliver maximum durability with customizable features and accessories. Linear motion inclined screens are used primarily in the aggregate industry where production volume has increased but space limitations do not allow for larger screens. Circular motion inclined screens typically lend themselves to scalping operations. The circular motion causes the material to roll down the deck. This helps reduce “plugging” of the near size material in the openings. Elliptical motion inclined screens operate in much the same way as the circular motion version. Depending on drive placement, this screen can speed up the travel rate on the feed end and slow it down on the discharge end.

Elgin’s reverse Incline Dewatering Screen is the ideal solution for desliming, dewatering and recovery of fines from effluent. Modular screen panels allow multitude of configurations of screen cloth for different applications. Screens that last. Elgin’s smart manufacturing techniques infuse exceptional strength to stress-relieved critical parts, resulting in a more rugged, durable body with high carrying capacity that can withstand years of tough industry use. Drives that last. Our exclusive linear-motion, high G-force TH Drive keeps performing strong for an average of 8-10 years. Maximum efficiency. Elgin’s ultra-high-capacity screens lead the industry in carrying capacity and accommodate a variety of interchangeable screen media. Plus, our screens deliver a consistent product – up to 8% moisture, depending on material.

This screen is used in almost every coal industry application, particularly in raw coal/deslime and drain/rinse operations. It increases processed tonnage 30% to 40% over the same footprint of a conventional type screen. The operating principle of the “banana” screen is based on maintaining a thin bed of material from the feed to discharge end. This allows immediate stratification of fines to the bottom of the bed and increases the probability of separation.

The CMI Model EBR/EBW Vertical Screen-Scroll Centrifuges are designed for small particles and will provide efficient and consistent moisture reduction even with fluctuating feed rates. Commonly used with a continuous process in which slurry containing both solid and liquid is continuously fed into and continuously discharged from the centrifuge.

Elgin’s Horizontal Vibratory Centrifuge (HVC) builds on seventy years of dewatering experience and reliability.  While terms like “workhorse” and “built like a tank” are used in describing past and present CMI centrifuges, the HVC continues this tradition of industry leading durability. The CMI HVC-1400 / 1500 utilizes a ‘sump splash’ lubrication system with no need for a pump, filter, gauges, or presurized oil lines. In addition, the sealed cartridge style drive assembly is designed to be easily replaced for maintenance.

The HSC Horizontal Screen Scroll Centrifuge is designed to be user-friendly while lowering the cost of installation, operation, maintenance and repair. Screen scroll centrifuge is a filtering centrifuge which separates solids and liquid from a solid-liquid mixture. Featuring a simplified lubrication system that removes the need for onboard pumps, hoses, switches, etc. All maintenance tasks are performed at floor level with no need to access the unit from underneath. Easy access grease points and oil drain/fill plugs simplify maintenance procedures.

The VC Centrifuge uses vibratory dewatering technology and centrifugal force to provide reliable dewatering of coarse particle applications. A large feed hopper eliminates the need for a feed chute, and a catch in the center increases part life. The VC features an accelerating wear plate which allows for even screen wear. The drive assembly consists of the main working parts en-closed in a steel cast housing which can then be removed as a single unit for easy replacement or repair.

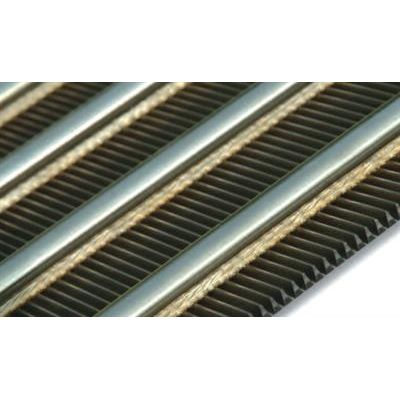

All Elgin profiles are cold shaped to exacting tolerances for width, height, relief, hardness and tensile. Nothing less than our rigid standards are acceptable during the shaping process.

Elgin’s patented polyurethane screen systems can be used on almost all OEM vibrating screen manufacturers for sizing, rinsing and dewatering your product. We also offer hybrid screen decking available in woven wire, perforated plate and profile wire to maximize your screen’s efficiency.
