Salher products
Accessories
SALHER - Model CVA-ATM and CVA-CAM - Manholes
Salher manufactures sampling manholes CVA-ATM and discharge control manholes CVA-CAM for the inspection and control of the discharge at the outlet of the treatment plant and oil/water separator. The latter is especially sized according to the regulations of the Community of Madrid for any industrial activity prior to the discharge to the municipal collector.
SALHER - Model CVA-P - Manhole Extension
The CVA-P manhole extensions manufactured in GFRP by Salher facilitate the installation of the equipment at a greater depth to save dimensions or protect them from frost and other external agents. For our underground equipment, Salher manufactures the pedestrian folding cover with cut-out extension TTAP which is a foldable cover for the protection and closure of tanks manholes and the cast-iron cover class d 400 TAPA-D40, whose breaking load is greater than 400 kg.

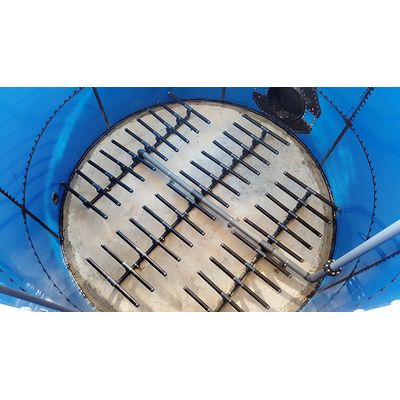

SALHER - Model DBF - Fine Bubble Diffusers
The fine bubble diffusers DBF manufactured by Salher are composed of two PVC tubes connected to a “t” piece. An EPDM membrane develops around the tubes that diffuse the air distributed inside. The micro-cuts of the membrane work as a valve which releases the air under pressure and closes to the passage of water. As a result, a thin air bubble with small diameter from 0.5 to 1.0 mm, slowly rises to the surface. The performance is considerably improved due to a larger oxygen transfer surface and a longer residence time of the bubble in the water.
SALHER - Model MC-CP, MC-CP-C, MC-VT and MC-CU - Flowmeters
Among the flowmeters prefabricated by Salher, we find the Parshall Flume, the triangular flowmeter V-notch MC-VT and the ultrasound meter for open channels MC-CU.
SALHER - Model CVC-AARC - Accessories for Oil/Water Separators
Among the Salher accessories for the separation of hydrocarbons, we highlight the spillways manhole and flow regulators CVC-AARC, made of 304 l stainless steel, with ring and washers in bronze and seat in PEHD. The flow regulator is installed at the outlet of the inlet manhole, that can be provided also by Salher. The water is stored in the manhole used as a stormwater tank, and then evacuated according to the capacity of the downstream system, through the flow regulator. This equipment regulates the output flow at a constant value, independently of the height of the water in the tank and avoids an oversizing of the normal rainwater evacuation system.

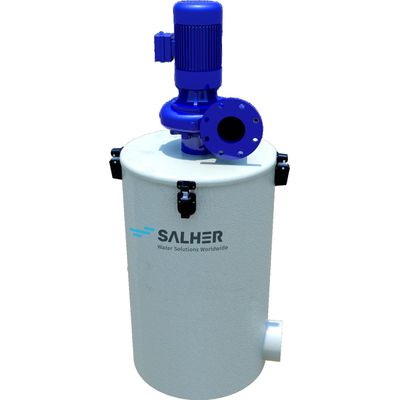

SALHER - Model CARBO-VENT - Accessories for Deodorization
The CARBO-SAC is a filter to treat polluting gases, such as hydrogen sulphide, mercaptans or volatile organic compounds (VOC’s), from sewage treatment plants and pumping stations, ideal for installation inside machine sheds. This filter is designed to continuously treat flows of 328 to 768 m³/h. Three different types of granules with specific functions operate inside to obtain the highest efficiency and longest useful life, these granules can be changed depending on the gases present.
SALHER - Bacteria and Enzymes for Water Treatments
Salher proposes bacteria and enzymes to improve the water treatments with the elimination of fats and odors (BRICK – 900 – 450), with the elimination of foams (CRM DEPUR), with the degradation of organic matter (SEPT), with biological treatments (DOSEFOSS) and with biological activators (CLAIR).
SALHER - Model TTAP - Foldable Telescopic Cover for Pedestrian Area
Foldable cover for protection and closure of tank manholes.
