BD|SENSORS GmbH products

Digital Pressure Gauges - Industry

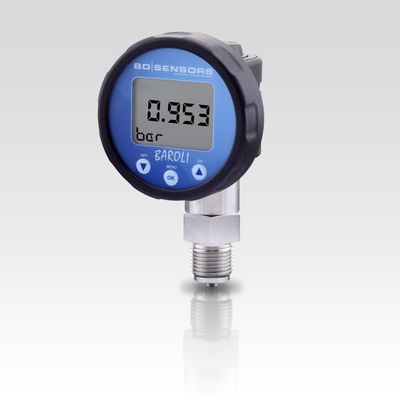

BAROLI 02 - Model BAROLI 02 - Digital Pressure Gauge BAROLI 02

The battery-powered BAROLI 02 enables a local displaying of values, satisfying the highest demands for accuracy and long-term stability. The pressure gauge may be applied compatible with the stainless steel used; it shows an excellent robustness and a high overpressure protection.
The BAROLI 02 display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions: changing the unit, displaying min / max values, calibrating of offset and the span, configuring the automatic switching-off.
Features:
- nominal pressure: 0 ... 100 mbar up to 0 ... 600 bar
- accuracy: 0.125 % FSO
- stainless steel diaphragm
- 2-line LC display, 4.5-digit 7-segment display, 6-digit 14-segment additional Display
- mechanical connections: inch, NPT threads
Optional Features:
- min- / max-function with reset function
- offset and end point calibration
- setting the pressure unit

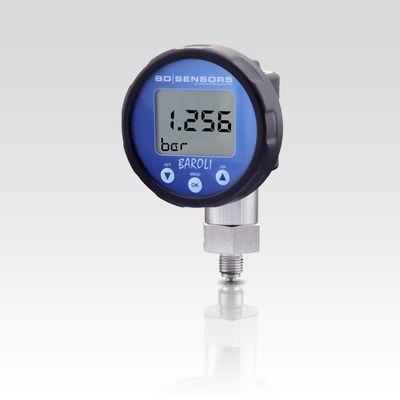

BAROLI 05 - Model BAROLI 05 - Digital Pressure Gauge BAROLI 05

The battery-powered digital pressure gauge BAROLI 05 has been designed for measuring the pressure (absolute or gauge) of fluids, oils and gases.
The display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions as changing unit, displaying min / max values, calibrating the offset and of span, as well as configuring the automatic switching-off complete the profile.
Features:
- nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
- accuracy: 0.25 % FSO BFSL (class 0.2)
- rotatable housing
- 2-line LC display, 4.5-digit 7-segment display, 6-digit 14-segment additional display
- different mechanical connections: inch, NPT threads
- ceramic diaphragm
Optional Features:
- min / max function with reset function
- offset and end point calibration
- setting the pressure unit
- switch-off automatic configuration

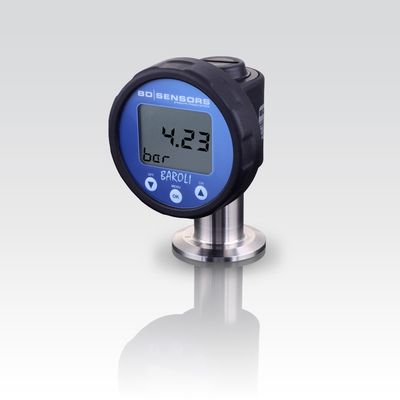

BAROLI 02P - Model BAROLI 02P - Digital Pressure Gauge BAROLI 02P

The battery-powered BAROLI 02P enables a local displaying of values in applications, where high requirements on hygienic process connections and easy cleaning or sterilisability are requested. The filling medium is food compatible oil with FDA approval. The display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions.
Additional functions: switching the unit, displaying min / max values, calibrating the offset and the end point, configuring the automatic switching-off.
Features:
- nominal pressure: 0 ... 100 mbar up to 0 ... 40 bar
- accuracy: 0.125 % FSO BFSL (class 0.1)
- 2-line LC display, 4.5-digit 7-segment display, 6-digit 14-segment add. display
- hygienic process connections, EHEDG
- flush welded stainless steel diaphragm
Optional:
- min/max function with reset function
- offset and end point calibration
- setting the pressure unit
- configuration of switch-off automatic

BAROLI 05P - Model BAROLI 05P - Digital Pressure Gauge BAROLI 05 P

The BAROLI 05P enables a local displaying of values in applications, where high requirements on hygienic process connections and easy cleaning or sterilisability are requested. The filling medium is food compatible oil with FDA approval.
The display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions as changing unit, displaying min / max values, calibrating of offset and span, as well as configuring the automatic switching-off complete the profile.
Features:
- nominal pressure: 0 ... 60 bar up to 0 ... 400 bar
- accuracy: 0.25 % FSO BFSL (class 0.2)
- flush welded stainless steel diaphragm
- rotatable housing
- 2-line LC display, 4.5-digit 7-segment display, 6-digit 14-segment additional display
- suited for viscous and pasty media
Optional Features:
- min / max function with reset function
- offset and end point calibration
