Electronic Pressure Switch - With Display

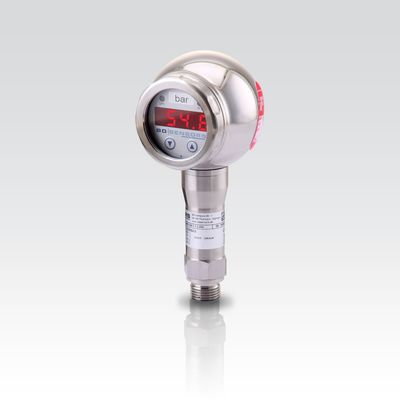

DS 401 - Model DS 401 - Pressure Switch DS 401

The electronic pressure switch DS 401 is the successful combination of
- intelligent pressure switch
- digital display
and has been specially designed for universal usage in industry applications; with flush diaphragm the DS 401 is suitable for the usage in viscous, pasty or highly contaminated media.
The rotatable stainless steel housing is predestined for rough conditions and difficult installing conditions, caused by the high functionality and robustness. As standard the DS 401 offers a PNP contact and is optionally available with a second, independent contact. Additionally the DS 401 could be equipped with an analogue output.
Features:
- nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
- accuracy: 0.5 % FSO
- rotatable and configurable display module
- indication of measured values on a 4-digit LED display
Optional Features:
- IS-Version
Ex ia = itrinsically safe for gases
- pressure port PVDF

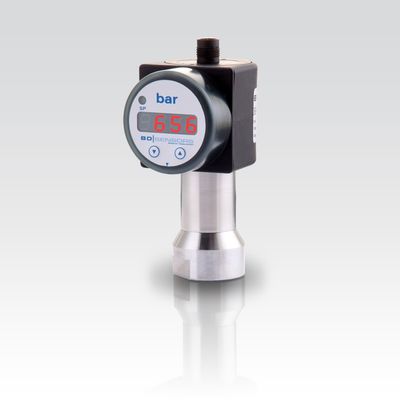

DS 201 - Model DS 201 - Pressure Switch DS 201

The electronic pressure switch DS 201 is the successful combination of
- intelligent pressure switch
- digital display
and has been specially designed for universal usage in industry applications. The DS 201 is available with flush pressure ports for viscous, pasty and highly contaminated media.
As standard the DS 201 offers a PNP contact and a rotable display module with 4-digit LED display. Optional versions like e.g. an intrinsically safe version, max. 4 contacts and an analogue output complete the profile.
Features:
- nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
- accuracy: 0.5 % FSO
- indication of measured values on a 4-digit LED display
- rotatable and configurable display module
- 1, 2 or 4 independent PNP contacts, freely configurable
Optional Features:
- IS-version
Ex ia = intrinsically safe for gases
- pressure port PVDF
- customer specific versions

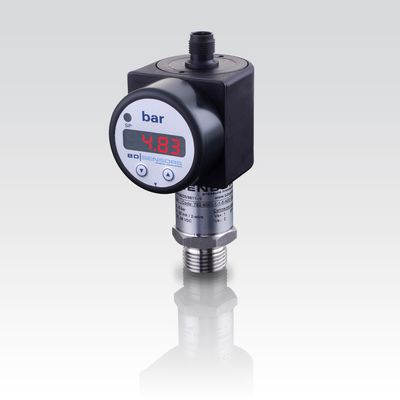

DS 202 - Model DS 202 - Pressure Switch DS 202

The electronic pressure switch DS 202 is the successful combination of
- robust pressure transmitter
- digital display
and has been specially designed for numerous applications in various industrial sectors.
As standard the DS 202 offers a PNP contact and a rotable display module with 4-digit LED display. The transmitters are suitable for an unrestricted use in oxygen applications up to 600 bar and an intrinsically safe IS-Version.
Features:
- nominal pressure: 0 ... 6 bar up to 0 ... 600 bar
- accuracy: 0.5 % FSO
- indication of measured values on a 4-digit LED display
- rotatable and configurable display module
- 1, 2 or 4 independent PNP contacts, freely configurable
Optional Features:
- IS-Version
Ex ia = intrinsically safe for gases
- oxygen application
- customer specific versions

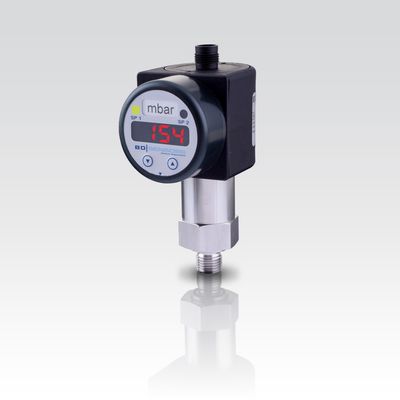

DS 210 - Model DS 210 - Pressure Switch DS 210

The electronic pressure switch DS 210 is the successful combination of
- intelligent pressure switch
- digital display
and has been specially designed for measuring of very small overpressure and for vacuum applications. Permissible media are gases, pressurized air and thin non aggressive media.
As standard the DS 210 offers a PNP-contact and a rotable display module. Additional features like e.g. an intrinsically safe version, max. 4 contacts and an analogue output complete the profile.
Features:
- nominal pressure: 0 ... 10 mbar up to 0 ... 1 bar and vacuum -1 ... 0 bar
- accuracy: 0.25 % / 0.35 % FSO
- indication of measured values on a 4-digit LED display
- rotatable and configurable display module
- 1, 2 or 4 independent PNP contacts, freely configurable
Optional Features:
- IS-Version
Ex ia = intrinsically safe for gases
- customer specific versions

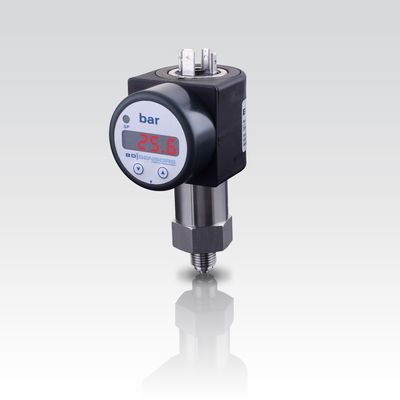

DS 214 - Model DS 214 - Pressure Switch DS 214

The electronic pressure switch DS 214 for very high pressure up to 2200 bar has been designed especially for use in plant and machine engineering as well as in mobile hydraulics.
The DS 214 has one 1 contact with standard version, this can optionally be upgraded up to four independent contacts. Via the rotatable modul with an integrated 4-digit display the DS 214 can be programmed easily and comfortably.
Features:
- nominal pressure: 0 ... 600 bar up to 0 ... 2200 bar
- accuracy: 0.35 % FSO
- indication of measured values on a 4-digit LED display
- rotatable and configurable display module
- 1, 2 or 4 independent PNP contacts, freely configurable
- pressure sensor welded
- extremly robust and excellent longterm stability
Optional Features:
- adjustability of span and offset (4 ... 20 mA / 3-wire)
- customer specific versions

BD|Sensors - Model DS 217 - Pressure Switch with Welded Stainless Steel Sensor

Nominal pressure: 0 ... 6 bar up to 0 ... 600 bar, accuracy: 0.5 % FSO, 1 analog output and up to 2 contacts, display and housing rotatable, perfect for oxygen applications.

BD|Sensors - Model DS 230 - Electronic OEM Pressure Switch

Nominal pressure: 0 ... 2 bar up to 0 ... 400 bar, accuracy: 1.5 % FSO, display and housing rotatable, up to 2 contacts, configurable via display.

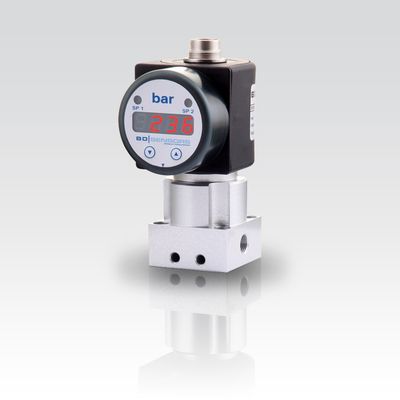

DS 233 - Model DS 233 - Pressure Switch DS 233

The DS 233 is a differential pressure switch with digital display for non-aggressive gases and compressed air. Because of its compact and robust aluminium housing it is particularly suited for machine and plant engineering.
Basic element of the DS 233 is a piezoresistive silicon pressure sensor, which features high accuracy and excellent long term stability.
As standard the DS 233 offers a PNP contact and a rotatable display module with 4-digit LED display for representing the differential pressure. Optional up to 2 freely configurable contacts are available.
Features:
- nominal pressure: 0 ... 6 mbar up to 0 ... 1000 mbar
- accuracy: 0.35 % FSO
- aluminium housing
- rotatable and configurable display module
- 4-digit LED display
- suited for non-aggressive gases and compressed air
Optional Features:
- 1 / 2 PNP contacts
- customer specific versions

DS 200 P - Model DS 200 P - Pressure Switch DS 200 P

The electronic pressure switch DS 200P is the successful combination of
- intelligent pressure Switch
- digital Display
and is suitable for the usage with viscous and pasty media.
As standard the DS 200P offers a PNP contact and a rotatable display module with 4-digit LED display. Optional versions like e.g. an intrinsically safe version, max. 4 contacts and an analogue output complete the profile.
Features:
- nominal pressure: 0 ... 100 mbar up to 0 ... 40 bar
- accuracy: 0.25 % / 0.35 % / 0.5 % FSO
- rotatable and configurable display module
- indication of measured values on a 4-digit LED display
- configurable contacts (switch on / switch off points, hysteresis / window mode, switch on / switch off delay)
Optional Features:
- analogue output
- IS-Version
Ex ia = intrinsically safe for gases
- customer specific versions

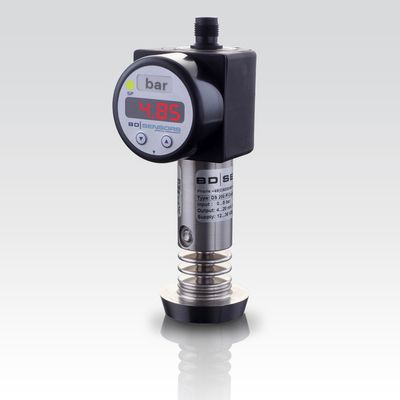

DS 201 P - Model DS 201 P - Pressure Switch DS 201 P

The electronic pressure switch DS 201P is the successful combination of
- intelligent pressure switch
- digital display
and is designed for universal applications in the mechanical engineering and other industries where a flush stainless steel diaphragm is necessary. This can be the case, for example, with higher viscous or slightly contaminated fluids.
For usage with higher media temperature optionally a cooling element up to 300 °C is available.
Features:
- nominal pressure: 0 ... 60 bar up to 0 ... 400 bar
- accuracy: 0.5 % FSO
- 1, 2 or 4 independent PNP contacts, freely configurable
- rotatable and configurable display module
- indication of measured values on a 4-digit LED display
Optional Features:
- IS-version
Ex ia = intrinsically safe for gases
- cooling element up to 300 ° C
- customer specific versions
