Pressure - Pressure Transmitter - Industry

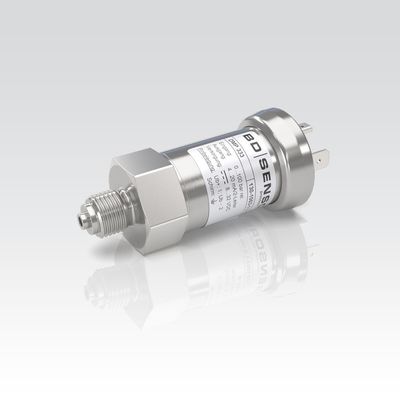

DMP 304 - Model DMP 304 - Pressure Transmitter DMP 304

The high-pressure transmitter type DMP 304 has been especially designed for applications with highest demand on precision and reliability. DMP 304 series is based on a compensated strain gauge, bonded onto a stainless steel diaphragm.
Due to the rugged stainless steel housing usage under extreme conditions and in IS-required areas is no problem.
Features:
- nominal pressure: 0 ... 2000 bar up to 0 ... 6000 bar
- accuracy: 0.5 % (opt. 0.25 %) FSO
- adjustability of offset and span via front sided potentiometers
- pressure port 9/16" UNF
- 80 % calibration signal with MIL / Bendix plug
Optional Features:
- IS-version
Ex ia = intrinsically safe for gases
- pressure port M20 x 1.5 and M16 x 1.5
- accuracy according to IEC 60770: 0.25% FSO

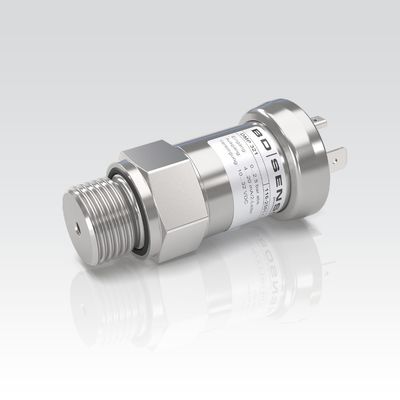

DMP 321 - Model DMP 321 - Pressure Transmitter DMP 321

The pressure transmitter DMP 321 is the consistent further development of our in many applications approved DMP 331. It shows an improved signal behavior and sets new standards in the industrial class. Its metallic diaphragm made of stainless steel (1.4435 / 316L) offers a good corrosion resistance in many industrial processes.
The modular device concept allows to combine different pressure ranges with a variety of electrical and mechanical connections.Thus a diversity of variations is created, meeting almost all requirements in industrial applications.
Features:
- nominal pressure: 0 ... 100 mbar up to 0 ... 600 bar
- accuracy: 0.1 % / 0.25 % FSO
- excellent thermal behavior
- excellent accuracy
- compact design
Optional Features:
- IS-version
Ex ia = intrinsically safe for gases and dusts
- pressure sensor welded
- customer specific versions

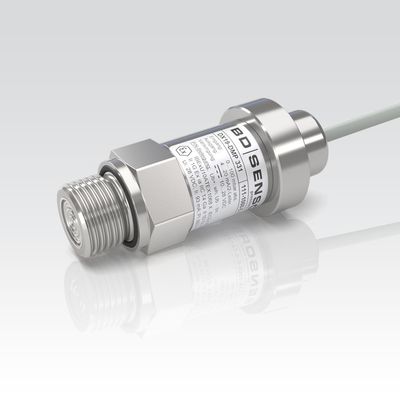

DMP 331 - Model DMP 331 - Pressure Transmitter DMP 331

The pressure transmitter DMP 331 can be used in all industrial areas when the medium is compatible with stainless steel 1.4404 (316 L) or 1.4435 (316 L). Additional are different elastomer seals as well as a helium tested welded version available.
The modulare concept of the device allows to combine different stainless steel sensors and electronic modules with a variety of electrical and mechanical versions.Thus a diversity of variations is created, meeting almost all requirements in industrial applications.
Features:
- nominal pressure: 0 ... 100 mbar up to 0 ... 60 bar
- accuracy: 0.35 % (opt. 0.25 % / 0,1%) FSO
- excellent thermal behavior
- excellent accuracy
- flush pressure port G 1/2" from 100 mbar
Optional Features:
- IS-version
Ex ia = intrinsically safe for gases and dusts
- SIL 2 according to IEC 61508 / IEC 61511
- pressure sensor welded
- customer specific versions

DMP 333 - Model DMP 333 - Pressure Transmitter DMP 333

The pressure transmitter type DMP 333 has been especially designed for use in hydraulic applications with high static and dynamic pressure. The transmitter is characterized by an excellent long term stability, also under fast changing pressure as well as positive and negative pressure peaks.
The modular concept of the device allows to combine different stainless steel sensors and electronic modules with a variety of electrical and mechanical versions.Thus a diversity of variations is created, meeting almost all requirements in hydraulic applications.
Features:
- nominal pressure: 0 ... 100 bar up to 0 ... 600 bar
- accuracy:0.35 % (opt. 0.25 % / 0,1%) FSO
- excellent long term stability, also with high dynamic pressure loads
- insensitive to pressure peaks
- high overpressure capability
Optional Features:
- IS-Version
Ex ia = intrinsically safe for gases and dusts
- SIL 2 version according to IEC 61508 / IEC 61511

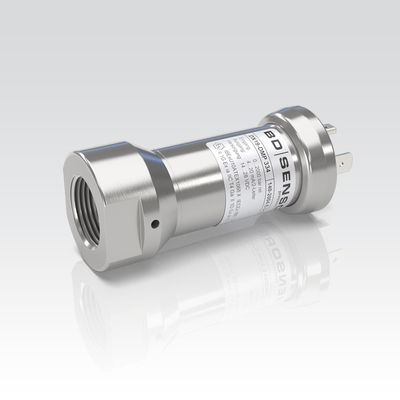

DMP 334 - Model DMP 334 - Pressure Transmitter DMP 334

The industrial pressure transmitter DMP 334 has been especially designed for use in hydraulic systems up to 2200 bar. The base element of DMP 334 is a thinfilm sensor, that is welded with the pressure port and meets high demands of foolproofness and reliability.
All of characteristics and the excellent mesurement data of DMP 334 as well as distinguished offset stability offer a pressure transmiter with easy handling, reliability and robustness for hydraulic user. The DMP 334 is deliverable with pressure ports of extrem pressure technics.
Features:
- nominal pressure: 0 ... 600 bar up to 0 ... 2.200 bar
- accuracy: 0.35 % FSO
- pressure sensor welded
- extremly robust and excellent longterm stability
Optional Features:
- IS-Version
Ex ia = intrinsically safe for gases and dusts
- pressure port M20 x 1.5 oder 9/16 UNF
- adjustability of span and offset
- different kinds of electrical connections

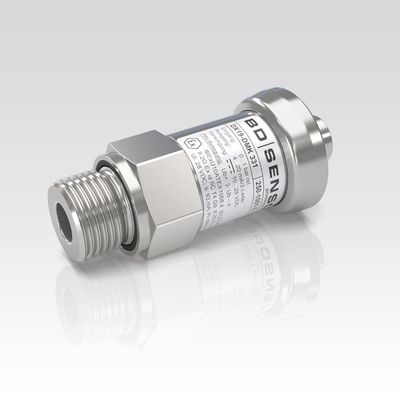

DMK 331 - Model DMK 331 - Pressure Transmitter DMK 331

The industrial pressure transmitter DMK 331 with ceramic sensor has been especially designed for pasty, polluted or aggressive media and for oxygen applications at low pressure range.
As with all industrial pressure transmitters made by BD|SENSORS, you may choose between various electrical and mechanical connections also on DMK 331.
Features:
- nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
- accuracy: 0.5 % FSO
- pressure port G 1/2" flush for pasty and polluted media
- pressure port G 1/2" open port PVDF for aggressive media
Optional Features:
- IS-Version
Ex ia = intrinsically safe for gases and dusts
- SIL 2 according to IEC 61508 / IEC 61511
- food compatible oil filling with FDA approval
- cooling element for media temperatures up to 300 °C
- customer specific versions

BD-Sensors - Model DMP 339 - Industrial Pressure Transmitter

Stainless steel sensor flush version G 1/4". The DMP 339 industrial pressure transmitter features a G ¼" flush pressure port and was designed for the use in a range of machinery including metering systems. It is ideal for measuring the pressure of viscous and pasty media, as only a small dead space is created. Material accumulation, dripping and stringing in machinery is eliminated. This increases the efficiency and reliability of your machines. The DMP 339 is available with various electrical connections, ensuring thus an excellent adaption to the application conditions.

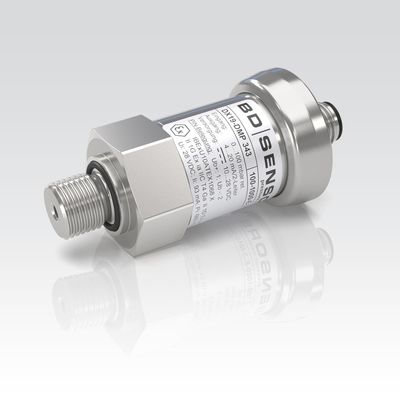

DMP 343 - Model DMP 343 - Pressure Transmitter DMP 343

The pressure transmitter DMP 343 has been especially designed for the measurement of very low gauge pressure and for vacuum applications. Permissible media are non-aggressive, dry gases and non-aggressive, low viscos oils.
The DMP 343 features excellent thermal behaviour and outstanding long term stability. A variety of standard output signals as well as mechanical and electrical connections make the DMP 343 covering a wide field of applications.
Features:
- nominal pressure: 0 ... 10 mbar up to 0 ... 1000 mbar
- accuracy: 0.35 %
- small thermal effect
- excellent long term stability
- excellent linearity
Optional Features:
- IS-Version
Ex ia = intrinsically safe for gases and dusts
- different electrical and mechanical connections
- customer specific versions

DCT 531 - Model DCT 531 - Pressure Transmitter DCT 531

DCT 531 with RS485 interface uses the communication protocol Modbus RTU which has found the way in industrial communication as an open protocol. The Modbus protocol is based on a master Slave architecture with which up to 247 Slaves can be questioned by a master – the data will transfer in binary form.
Due to the usage of high quality materials and components, DCT 531 is suitable for almost every industrial application, if medium is compatible with stainless steel 316L.
The modular concept of the pressure transmitter allows customized electrical or mechanical connections, so it is easy to adapt the DCT 531 to different conditions on-site.
Features:
- nominal pressure: 0 ... 100 mbar up to 0 ... 400 bar
- accuracy: 0.25% FSO
- perfect thermal behaviour
- excellent long term stability
Optional Features:
- pressure port G 1/2" flush from 100 mbar
- pressure sensor welded
- customer specific versions

DCT 532 - Model DCT 532 - Pressure Transmitter DCT 532

Contrary to the industrial pressure transmitter with analog signal, DCT 532 has a digital i²C-interface. i²C has a master-slave topology, whereby you can use up to 127 devices at one master.
Due to the usage of high quality materials and components, DCT 532 is suitable for almost every industrial application, if medium is compatible with stainless steel 316L.
The modular concept of the pressure transmitter allows customized electrical or mechanical connections, so it is easy to adapt the DCT 532 to different conditions on-site.
Features:
- nominal pressure: 0 ... 100 mbar bis 0 ... 400 bar
- accuracy: 0.25% FSO
- output signal: digital i²C
- bus frequency max. 400 kHz
- configuration of data format
- interrupt signal
- perfect thermal behaviour
- excellent long term stability
Optional Features:
- pressure port G 1/2" flush from 100 mbar
- pressure sensor welded
- customer specific versions
