Pressure - Differential Pressure Transmitters - Precision

DPT 200 - Model DPT 200 - Differential Pressure Transmitter DPT 200

The differential pressure transmitter DPT 200 has been especially designed for the process industry and can be used for level measurement of closed, pressurized tanks, pump or filter controlling, etc.
The possibility passes different pressure seals at the DPT 200 adding with different membrane materials to reach an optimal adaptation to the application.
Features:
- differential pressure von 1 mbar bis 20 bar
- static pressure bis max. 400 bar
- turn-down max. 100:1
- accuracy: 0.075 % FSO
- HART®-communication
- output signal: linear or square root extraction
- aluminium housing
Optional Features:
- IS-version:
Ex ia = intrinsically safe Version (group II)
EX ia= intrinsically safe Version for firedamp mines (group I)
Ex d = flameproof enclosure (group II)
- LC-Display
- stainless steeel housing

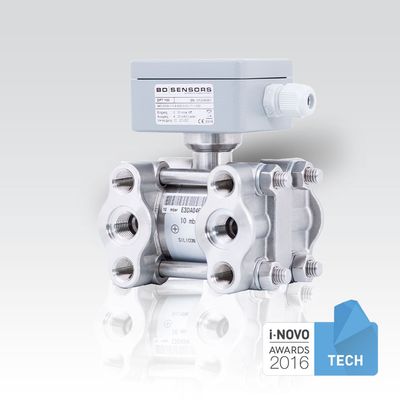

DPT 100 - Model DPT 100 - Differential Pressure Transmitter DPT 100

The differential pressure transmitter DPT 100 has been especially designed for fast test processes in leakage and flow measurement, where a fast response time and high sampling rate are necessary.
The compact design of the DPT 100 facilitates the use in standardised applications, e. g., and the installation in 19“ Rack.
The DPT 100 with optionally RS485 interface uses the communication protocol Modbus RTU which has found the way in industrial communication as an open protocol. The Modbus protocol is based on a master Slave architecture with which up to 247 Slaves can be questioned by a master – the data will transfer in binary form.
Features:
- differential pressure from 10 mbar up to 20 bar
- static pressure max. 400 bar
- accuracy: 0.1 % FSO
- output signal 4 ... 20mA / 2-wire
- aluminium housing, die casting
Optional Features:
- output signal RS485 with Modbus RTU protocol
- several process connections
