Pressure Measuring Products - Special Versions

DMK 456 - Model DMK 456 - Pressure Transmitter DMK 456

The pressure transmitter DMK 456 has been developed for measuring the pressure in systems and the level in tanks and is as a consequence certificated for shipbuilding and offshore applications.
Due robust stainless steel field housing and the possibility to use the device in intrinsic safe areas (temperature class T6) enable to measure the pressure of aggressive gases and fluids under extreme operating conditions. The basis for the DMK 456 is a capacitive ceramic sensor element designed by BD|SENSORS, which offers a high overload resistance and medium compatibility.
Features:
- nominal pressure: 0 ... 40 mbar up to 0...20 bar
- accuracy: 0.25 % (opt. 0.1 %) FSO
- shipping approvals: ABS, BV, CCS, DNV, GL, LR
- IS-version (temperature class T6), Ex ia = intrinsically safe for gases
- high overpressure capability
- robust stainless steel field housing
Optional Features:
diaphragm AI2O3 99.9%

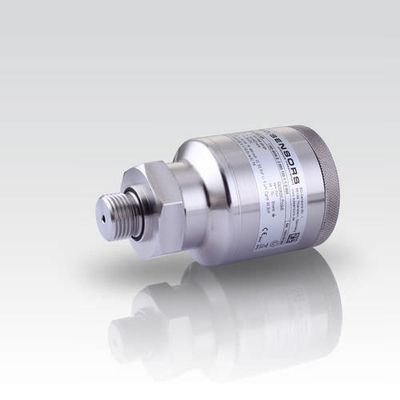

HU 300 - Model HU 300 - Pressure Transmitter HU 300

The pressure transmitter HU 300 has been especially developed for extreme operating conditions in the petrochemical industry (on- and offshore sites). A high degree of reliability and accuracy is the precondition for a perfect function during cementing and tightening processes (annulus) on wellbores.
A one-piece pressure port, a high-quality pressure sensor and precise machining and assembly techniques ensure a small drifting and a high long-term stability. A very high resistance against vibration, shock and pressure peaks without any influence on the measurement characteristics is guaranteed.
Features:
- nominal pressure: 0 ... 5000 psi up to 0 ... 15 000 psi
- accuracy: 0.5 % FSO
- vibration / shock
- extremly robust and excellent longterm stability
Optional Features:
- IS-version zone 0/1 (only for 4 ... 20 mA / 2-wire)
- electrical connector Glenair (4-pin), Jupiter (4-pin)
