Pressure - Differential Pressure Transmitters - Industry

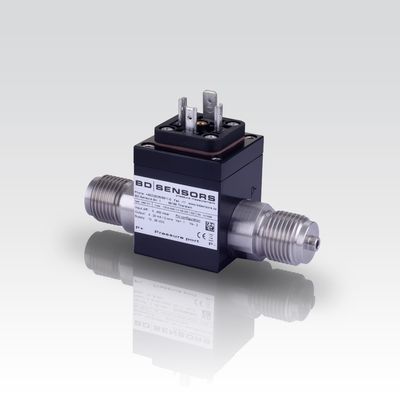

DMD 331 - Model DMD 331 - Differential Pressure Transmitter DMD 331

The DMD 331 is a differential pressure transmitter for industrial applications and is based on a piezoresistive stainless steel sensor, which can be pressurized on both sides with fluids or gases compatible with SST 1.4404 and 1.4435.
The compact design allows an integration of the DMD 331 in machines and applications with limited space. The DMD 331 calculates the difference between the pressure on the positive and the negative side and converts it into a proportional electrical signal.
Features:
- differential pressure 0 ... 20 mbar up to 0 ... 16 bar
- accuracy: 0.5 % FSO
- 2 piezoresistive stainless steel sensors
- differential pressure wet / wet
- permissible static pressure -one sided- up to 30 times of
differential pressure range
- compact design
- mechanical robust and relieable at dynamic pressures
as well as shock and vibration

BD-Sensors - Model DMD 831 - Differential Pressure Transmitter

Stainless steel sensor plant and mechanical engineering.

DPS 200 - Model DPS 200 - Differential Pressure Transmitter DPS 200

Features:
- differential pressure 0 ... 6 mbar up to 0 ... 1.000 mbar
- accuracy: 1 % FSO
- piezoresistive pressure sensor

DPS 300 - Model DPS 300 - Differential Pressure Transmitter DPS 300

The pressure transmitter DPS 300 was developed for the differential pressure measuring for dry, non aggressive gases and compressed air and can be used for several HVAC applications.
The DPS 300 is a multi range transmitter with up to three adjustable ranges.
The device is equipped with a two-line LC display optionally and can simply parameterised. Values, status of the contact and the unit are shown on the display.
Features:
- differential pressure 0 ... 1.6 mbar up to 0 ... 1.000 mbar
- accuracy: 0.5 % FSO BFSL
- current and voltage output signals in 2- and 3-wire systems
- adjustable ranges
- adjustable damping
Optional Features:
- LC-display, two-line
- automatic zero adjustment
- contacts (only in combination with display)
- square root extraction (only in combination with display)
