Brentwood Industries, Inc. products

Water Technologies - Components for Agricultural Engineering

Plastic Components for Air Humidifying and Cooling

Excellent Cooling Capacities: For high productivity in livestock breeding it is becoming more and more important to respond to the specific requirements of the species involved. This includes controlling air temperature in the stables. The air in stables needs cooling particularly in regions where high temperatures prevail. To this end, an evaporative condenser is used to humidify and cool the artificially generated air flow. We have developed HUMIPACKING: a plastic component for evaporative coolers.

Fills for Odor Control and Ammonia Reduction

Exhaust Air Cleaning in Stables: Dust and ammonia are the substances to be cleaned from the waste air. Prescribed are cleaning efficiencies from 70-90% depending on where the sheds/stables are located. To efficiently and economically comply with this task, filling materials are needed which can be used in both counter and cross-flow applications (e.g. tunnel ventilation) in local waste air cleaning systems. The filling materials we have developed comply with all the requirements and have proved their operating efficiency in hundreds of installations.

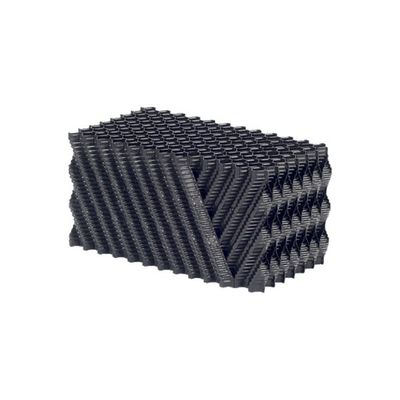

AGRIdek - Agricultural Air Scrubber Dedust Packings

Dust and dirt entering the air scrubber pose a problem for pig and poultry farming. Too much dust reduces the scrubber performance; the ventilation power decreases and operation and maintenance cost increase. AGRIdek dedust packings considerably reduce the pollution. Placed between the stable building and the air scrubber, they separate dust, skin particles and feathers from the stable exhaust air. The packings are made of UV-resistant polypropylene material which ensures a long service life. Their high mechanical stability is due to specially arranged foils. Oust and dirt that may settle in the continuous channels is easily and quickly removed by using a high pressure cleaner, thus saving on maintenance efforts and cost.

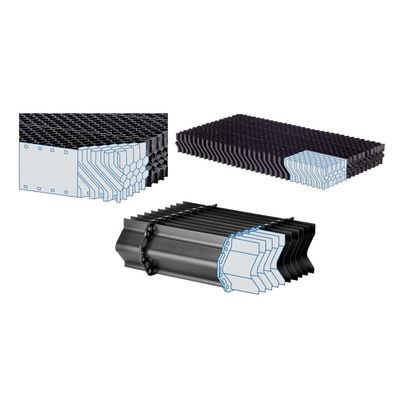

PLASdek - Drift Eliminators

Modern re-cooling systems need to consider aspects of the environment and sustainability. For cooling towers this means it is important to reduce the loss of water and emissions. Therefore drift eliminators are used. They are installed above the water distribution and cooling fills and catch the water drops that are carried with the air flow and redirects them into the cooling water circuit. Drift eliminators are available in two different types. The profile (TAP 16|0) is mostly used in larger, the module types (TEP 130 and TEC 130) in smaller cooling towers.

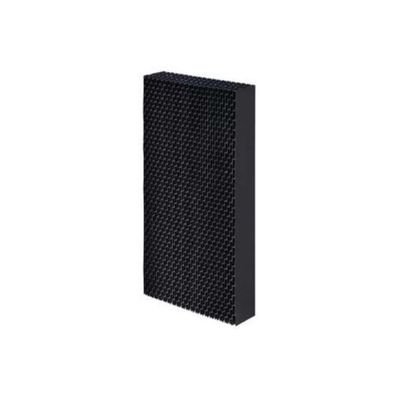

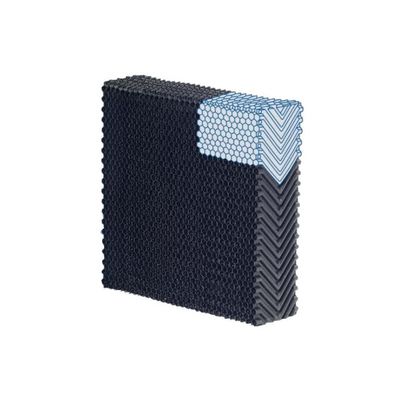

Humipacking - Plastic Components for Evaporative Coolers

Evaporative cooling presents a proven procedure to cool chicken, hog or green houses, especially in warm regions of the world. For this purpose, HUMIPACKING fills are mounted into the walls of stables and green houses and are irrigated. An air flow generated by fans is lead through the fills and is at the same time humidified and cooled. The use of polypropylene together with the special geometry creates rugged elements that are imperishable, UV-resistant and almost impervious to light. When serviced appropriately, they offer a constant cooling capacity throughout their lifetime. HUMIPACKING elements are used as well in our AGRIdek climate system.
