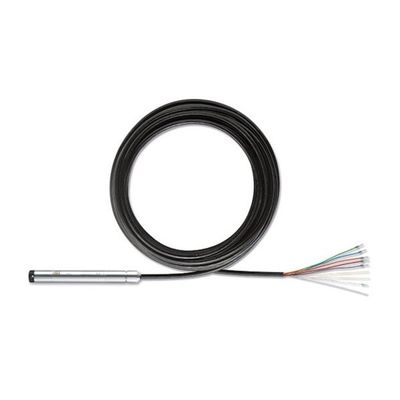

The OTT PLS 500 measures water level, depth to water, or pressure by means of an easy to maintain, ceramic pressure cell. This highly accurate sensor includes design features such as four internal compensations, stainless steel housing, and a rugged cable making it ideal for monitoring water level in a variety of applications. Common communication protocols (SDI-12 and Modbus RTU) allow for seamless integration with external data loggers. The accurate temperature measurements and built-in microcontroller compensate for environmental changes in water density. Built-in QA/QC and metadata along with reduced sensor drift allow you to have full confidence in your long-term data.

Self-contained, robust surface and groundwater level logger for measuring water level, temperature, and conductivity. The OTT ecoLog 1000 is a self-contained, robust surface and groundwater level logger for measuring water level, temperature, and conductivity. It provides reliable system up-time and accurate measurements while avoiding data gaps. It’s simple to operate using just a smart phone or PC via integrated Bluetooth Low Energy (BLE) - no additional tools for maintenance or battery replacement. It supports mobile devices, smart phones, and tablets operating with Android, iOS or Windows 10. Configure and monitor your data remotely with integrated two-way mobile communication to avoid unnecessary, expensive trips to your measurement site and send encrypted data with automatic retries if transmission fails.

OTT SE 200 float-operated shaft encoder water level sensor. The OTT SE 200 float-operated shaft encoder level sensor provides proven water level measurements in continuous, unattended monitoring in ground and surface water applications. A measured value is being calculated via internal processing and is available via the interfaces SDI-12 and 4 ... 20 mA.

OTT Maximum Level Gauge to indicate max water level after flood or tide. The OTT Maximum Level Gauge is a cost-effective measuring device that indicates the maximum water level by tidal waves or other level fluctuations over a color marking. It is based on the simple principle of color marking. The threshold level is used for preservation of evidence and provides accurate data for later post-processing of flood events.

Water level and flow gauges for measurement reference. Staff gauges from OTT as basic equipment for every level / discharge gauging station. Depending on whether the staff gauge is to be mounted vertically or on a slope, you can choose between vertical or inclined staff gauges. Furthermore the staff gauges are available with 2 mm thick sheet steel or 5 mm thick cast aluminium.

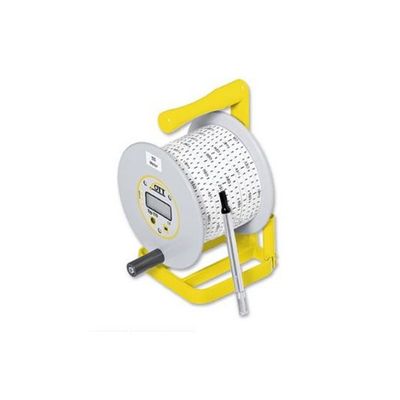

OTT Contact Gauges for measurements of depth to water, temperature and conductivity. OTT Contact Gauges are essential for manual measurements of depth to water, temperature, and conductivity in groundwater. The drum is held by a stable frame and is easy to carry. It is very smooth, so that you can effortlessly drain and haul the probe.

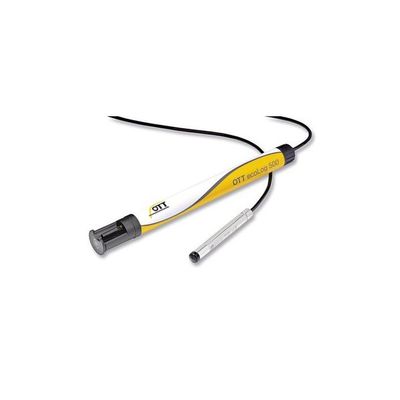

Water level sensor with built-in datalogger for surface and groundwater applications. The OTT ecoLog 500 is a complete system for water level and temperature measurement. Designed for full deployment inside groundwater wells as well as surface water applications, the OTT ecoLog 500 offers data and alarm message transmission options via SMS, HTTP, FTP and e-mail, giving users flexible remote data access from their office.

The OTT CBS is a compact, accurate, and low power bubbler sensor for surface water level monitoring. The OTT CBS meets or exceeds USGS standards for accuracy, and will not drift over time. It features outputs for SDI-12 and 420 mA.

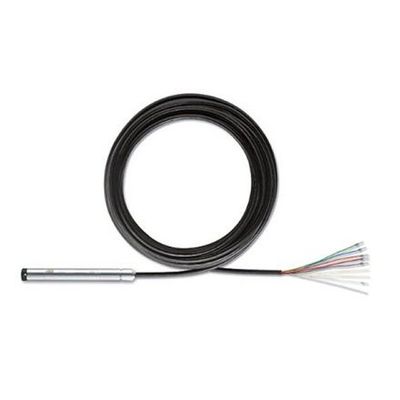

Robust ceramic pressure transducer for water level measurement. The OTT PLS measures water level, depth to water, or pressure by means of an integrated controller and ceramic pressure-measuring cell. Design features such as multiple communication outputs (SDI-12 or 4 ... 20 mA), stainless steel housing, and a rugged cable make this sensor ideal for monitoring water level in a variety of applications.

The OTT PLS-C measures water conductivity, level, and temperature in both surface and groundwater applications with a robust ceramic pressure cell and 4-electrode conductivity cell. Its extremely low power consumption makes it ideal for long-term deployment, particularly at solar powered measuring stations for ground-and surface waters.
