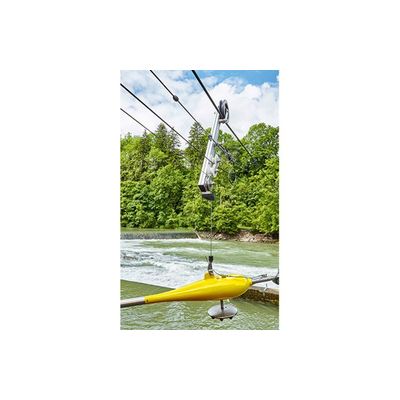

OTT cableway systems provide safety where mobile discharge measurements in water or from a bridge cannot be performed. They are driven mechanically or electrically and are available for span lengths of up to 160 m. The systems are DEKRA type approved and meet all applicable safety requirements. The components do not require any maintenance; lubrication or oil changes are not necessary.

OTT SVR 100 is a simple, non-contact, compact surface water velocity radar sensor. Designed for measuring flow in open channels and rivers where reliable velocity data is required continuously, during floods or periods of high concentrations of suspended sediments. The sensor is mounted above the water surface, away from floating debris using a flexible bracket for vertical or horizontal installation. Velocity measurements and sensor status information from the integrated vibration and tilt sensor is available via SDI-12 over RS-485 and Modbus. It is also compatible with OTT Prodis 2 software for system calibration.

The OTT MF Pro is a user-friendly, low maintenance electromagnetic current meter for cost-efficient in-stream discharge measurement. The OTT MF pro saves time in the field by automatically calculating discharge and its electromagnetic sensor head is maintenance-free, ideal for use in low-flow environments, and unaffected by large amounts of organic matter.

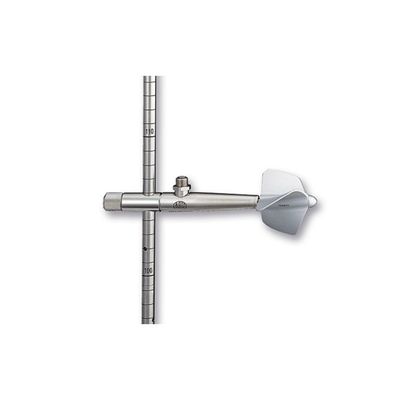

The OTT C31 Universal Current Meter is designed for flow velocity measurements in combination with hand-held wading rods or cable suspended from a bridge or boat. Different accessories like sounding weights (middle pieces), sounding reels (winches), cable ways etc. allow the setup of a complete flow monitoring station.  OTT C31 Universal current meters mean thousandfold proven quality, precision and reliability - worldwide for decades.

The OTT C2 small current meter for discharge measurements for shallow waters in small rivers, channels, laboratories and river models. Proven a thousand times to measure reliably flow velocities from 0.025 up to 5 m/s. Available for rod measurements on 9 mm or 20 mm rod.
