The 894 Professional CVS is a made-to-measure CVS instrument for the electroplating industry that masters large sample loads and changing applications. Its central applications are the determination of brighteners, suppressors, or levelers in electroplating baths. With its modular design, its diverse automation options, and the viva software that offers individual method development – among numerous other benefits – this system adapts to the requirements of all users.

The 919 IC Autosampler plus for VA is suitable for small sample series of fully automatic trace determinations of heavy metals using polarography and voltammetry together with Professional VA instruments and viva. The system is controlled directly by the viva software and permits automatic changes of method between different types of determinations. The sample rack supplied holds 28 samples with a maximum size of 10 mL. The 919 IC Autosampler plus for VA is supplied with accessories, sample rack, and connection cable so you can set up a complete workplace, although it does not come with rinsing equipment.

Drive with write/read hardware for intelligent dosing units. With permanently attached cable (length 0.65 m).

The 919 IC Autosampler plus for CVS, in conjunction with Professional VA/CVS instruments and viva, is suitable for small sample series of fully automatic determinations of organic additives in electroplating bath, e.g. "brighteners" and "suppressors" using "Cyclic Voltammetric Stripping" (CVS). The system is controlled directly by the viva software and permits automatic changes of method between different types of determinations. The sample rack supplied holds 14 samples with a maximum size of 50 mL. The 919 IC Autosampler plus for CVS is supplied with accessories, sample rack, and connection cable so you can set up a complete workplace, although it does not come with rinsing equipment.

The 843 Membrane Pump Station enables the automatic rinsing and emptying of the measuring vessel in partly automated and fully automated Professional VA and CVS systems. It has two built-in membrane pumps that can be controlled via the remote signal. The versions for VA and CVS are equipped with the complete accessories for the automatic rinsing and emptying of the measuring vessel.

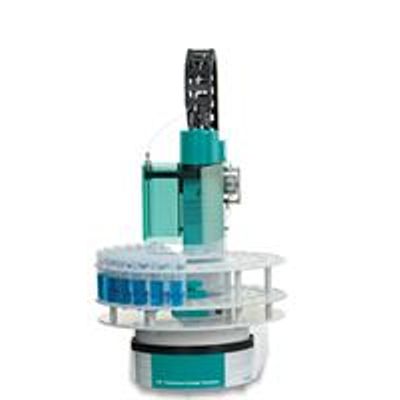

The 858 Professional Sample Processor for VA and CVS, in conjunction with Professional VA/CVS instruments and viva, enables the fully automatic processing of large sample series of organic additives in electroplating baths, e.g. "brighteners" and "suppressors" using "Cyclic Voltammetric Stripping" (CVS). The system is controlled directly by the viva software and permits automatic changes of method between different types of determinations. The sample rack supplied holds 56 samples of a maximum of 11 mL and 28 samples of a maximum of 50 mL for brightener determination. The 858 Professional Sample Processor for VA and CVS is supplied with built-in robotic arm, together with accessories, sample rack and connection cable for setting up a complete workplace, although it does not come with rinsing equipment.
