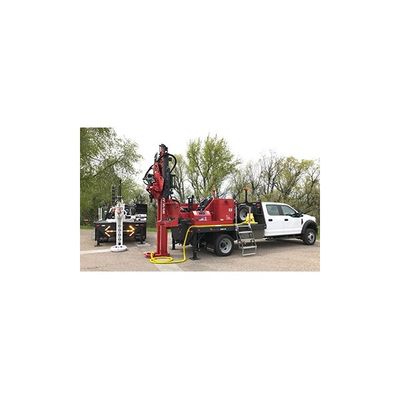

The PowerCoreTM 9410 allows you to limit the number of employees needed on site. Each model is set up with our standard direct push capability by using a 200 ft-lb. hydraulic hammer along with a 2400 ft-lb. hydraulic core motor that can core through concrete and asphalt to allow access for the collection of intact continuous soil cores. The PowerCoreTM 9410 model has all the same features and robust design as our direct push machines. It’s powered by a Kohler KDI 1903 (Tier4F) Turbo Diesel engine that provides plenty of power. It powers a 3,000 ft-lb torque auger motor at 50 RPM on low, 150 RPM on high, and a 3rd position for high-speed coring up to 650 RPM. Matched with our 200 ft-lb direct push hammer, new 72” stroke mast oscillation design, and optional 3,000 ft-lb overhead winch system makes this the most versatile truck-mounted PowerCoreTM we have ever built.

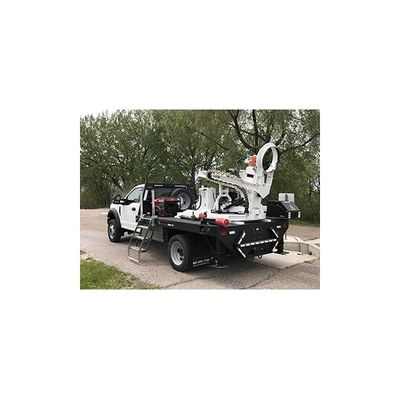

The PowerCoreTM 9400 allows you to limit the number of employees needed on site. This asphalt & concrete coring system provides a convenient, cost-effective method for retrieving a sample of concrete or asphalt for materials tests, or to collect soil samples from below the pavement. Rather than having to remove large sections of the concrete or asphalt, simply core a small-diameter hole. Then you can collect clean core samples or easily collect intact concrete and asphalt cores for testing and sampling.
