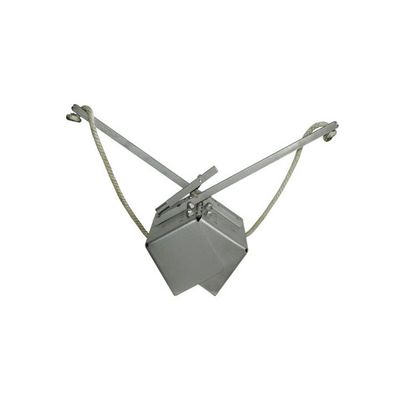

Easily sample most types of bottom surfaces. Constructed from stainless steel and powder-coated carbon steel for corrosion resistance. The top of the sampling chamber is screened to allow water flow during deployment and reduce the frontal shock wave that may displace sediment as the dredge contacts the sample surface. A two-way spring-loaded mechanism activates on contact with the bottom, no messenger is needed. Sampling area is 6` x 6`.

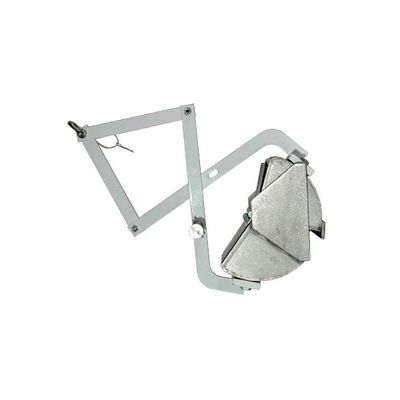

The AMS 5 lb. sand/silt dredge is a great tool for grab sampling sand or silt. The AMS sand silt dredge is made entirely from 300 series stainless steel. It features a hinged scissor jaw design with a trigger mechanism that holds the sampler open until it contacts the surface to be sampled. Raising the dredge closes the scissor jaws to collect the sample. All stainless steel, 5 lb. weight, 6" x 7 1/2" jaw opening.

Spring-loaded! The AMS all stainless steel Ekman dredge is spring-loaded with a messenger that travels down the rope and trips the dredge to close.
