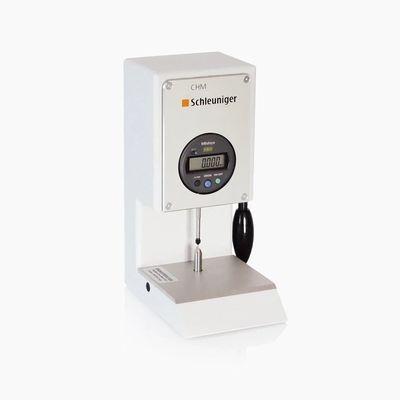

The CHM crimp-height measurement system for standard, noninsulated, crimp terminals uses a spring-loaded pin with a defined contact pressure which ensures consistent results. The CHM is – compared to conventional handheld units – easy to use for measuring crimp height. Its point-and-blade combination is specifically designed for this purpose. The CHM can be used as a standalone unit or integrated in CrimpCenter machines.The lever on the side raises the top pin, allowing the operator to insert the sample. When the operator lowers the lever, the spring-loaded pin drops to make contact with the sample, reducing the time required to take the measurement. The operator can use both hands for easier positioning in the lighted work area. This ensures that the terminal is properly positioned in the micrometer, improving reliability and repeatability.Using the CHM makes your crimp-height testing process more efficient, reducing the time required for collecting test data.

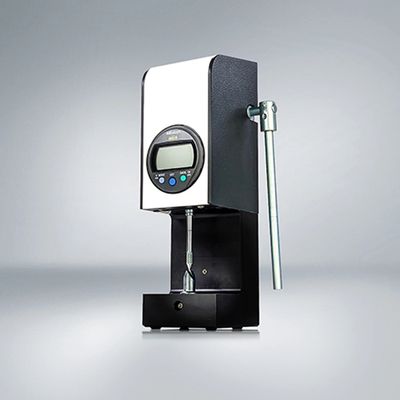

The MicroHeight 10 crimp height measurement device verifies the quality of crimps either as a stand-alone device or integrated into certain Komax machines for quality verification. The crimp height measurement device, MicroHeight 10, consists of an anvil to support the crimp and a measuring tip on a dial gauge to determine the height of the crimp. The patented centering aid positions the terminal accurately, minimizing operator-induced errors. Moreover, the device comes equipped with a camera and LED illumination to provide a clear view of the work area. The included software allows the configuration of the virtual keyboard and buttons, controlling the lighting and capturing snapshots of the work area whilst visually aiding the user to hold the crimp straight by means of a correct measuring zone indication. The optional tool set includes an extra wide anvil of 1.0 mm (0.0394 in) and a measuring tip of 0.8 mm (0.0315 in). The device can be used as a stand-alone tool or integrated into certain Komax machines for quality verification.

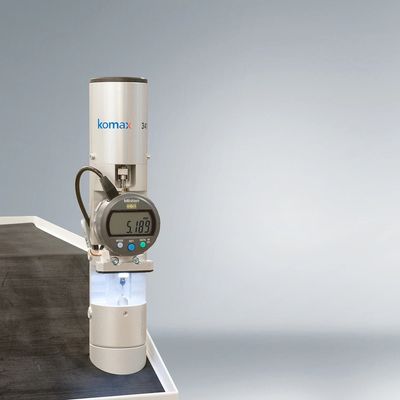

The Komax 341 crimp height measurement device measures terminals up to a height of 8 mm and compares them with the target crimp height. If there is no match, production will not start. The measurement device ensures quality even before production: The crimp height is measured before the start, transmitted to the base machine and compared with the setpoint. If the values do not match or if the measurement is not performed, production cannot be started. This prevents incorrect processing. The Komax 341 crimp height measurement device perfectly complements the mci 721/722 and C1370 crimp modules with integrated crimp height adjustment: Based on the measured value, the correction to achieve the target crimp height is calculated. The crimp modules then automatically correct the height; there is no need to adjust the crimp height by hand. This means that the changeover and downtime of the machine can be significantly reduced.
