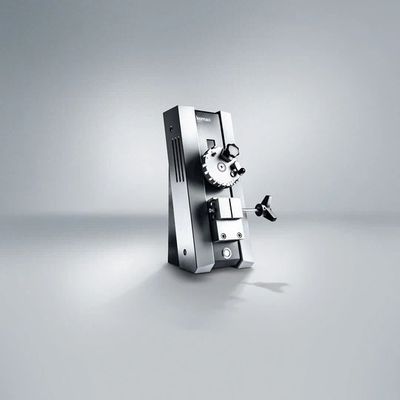

The single-range PullTester 20 is an economical, motorized benchtop device for measuring the stability of the crimp connections with pull forces of up to 500 N. The PullTester 20 is equipped with a speed-controlled motor, ensuring consistent pull rates with two variable pull rates in accordance with standards such as IEC and SAE, which ensures repeatable and accurate data. Pull-to-break (destructive) tests can be measured in pound-force, Newtons, or kiloponds.The RS 232 interface allows for easy curve analysis and statistics. The simple LCD display makes programming and reading easy.

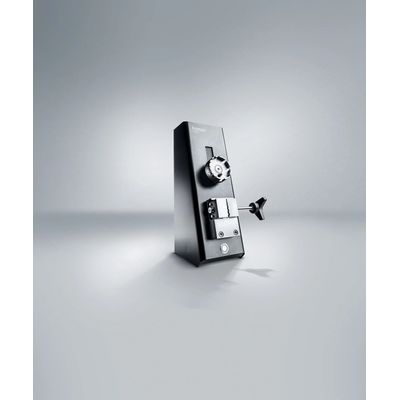

The benchtop PullTester 25 measures pull forces on crimp and ultrasonic metal welding connections, with two scales ranging up to 500 N for small and up to 1,000 N for larger wires. Pull test values are critical for quality control and assurance. Hand-actuated or pneumatic pull test devices can give inconsistent data. The Schleuniger PullTester 25 is equipped with a speed-controlled motor, ensuring consistent pull rates for repeatable and accurate data. Pull forces can be measured in pound-force, Newtons, or kiloponds. The standard 12-position terminal holder accommodates a wide variety of crimps to suit most applications. More terminal holders are available upon request.This versatile machine has two measuring ranges, enabling the use of its 500 N (110 lbf) scale for small wires while easily switching to a 1,000 N (220 lbf) scale for larger wires. This dual-range capability ensures the highest accuracy for the widest range of applications.

The measuring range of the PullTester 26T is divided into two separately calibratable levels, measuring pull-off forces up to 200 and 1000 N with a uniform, constant pulling speed. The PullTester 26T is a motor-driven benchtop device that measures the critical pull-force values of crimped, welded, plugged, and other connections for quality control. The two separately calibrated measurement ranges, up to 200 and 1000 N, ensure reliable measuring results. The standard 12-position terminal holder contact allowsto test most applications. Other holding fixtures are available upon request. The 7-inch display shows the pull-off curve in real time and allows data and measurement tasks for different crimp connections to be entered comfortably. Pull-off values, pull-off curves, statistics, jobs, and measurements can be stored in the internal memory. Thanks to the PullTester 26T, companies can maintain their quality standards and guarantee the safety of crimped products.

The benchtop PullTester 27 measures pull forces up to 2,000 and 5,000 N as standard or optionally 5,000 and 10,000 N of wire crimp and ultrasonic metal welding connections. The dual-range, motorized PullTester 27 measures pull-test forces of crimp and ultrasonic weld connections. This versatile machine comes in two versions with two individually calibrated measuring ranges each: the PullTester 27 (standard) measures pull forces of 2,000 and 5,000 N (440 / 1,100 lbf), while the special version, PullTester 27-10, works with 5,000 and 10,000 N (1,100 / 2,200 lbf).This dual-range capability ensures the highest accuracy for many applications. The speed-controlled motor provides consistent pull rates. Pull forces are measured in poundforce, Newtons, or kiloponds. The terminal holder can be manufactured based on customer needs and easily changed by a convenient quick change system. The PullTester 27 is suited for quality assurance in a production environment.

The benchtop PullTester 27 measures pull forces of 2,000 and 5,000 N as standard, or optionally 5,000 and 10,000 N, for wire crimp and ultrasonic metal welding connections. The PullTester 28 measures pull forces of wire crimp connections as well as ultrasonic metal welding connections on a wider range of wires. It can also perform nondestructive tests (hold to a specified force). The PullTester 28 comes in two versions: The standard version uses individually calibrated measuring ranges of 2,000 and 5,000 N (440 / 1,100 lbf) enabling use for small or large cables. The special PullTester 28-10 uses forces of 5,000 / 10,000 N (1,100 / 2,200 lbf).The speed-controlled motor ensures consistent pull rates throughout the measuring range resulting in repeatable, accurate data displayed in poundforce, Newtons or kiloponds. The terminal holder can be designed and manufactured based on custom needs and easily be changed utilizing a convenient quick change system.

The motorized PullTester 320 is used with automatic crimping machines to measure pull-off forces of 100 N (22.5 lbf), 200 N (45 lbf), and 1,000 N (220 lbf) for wire terminations. This versatile machine has three individually calibrated measuring ranges of 100 N (22.5 lbf), 200 N (45 lbf), and 1,000 N (220 lbf) and four selectable pulling rates of 25, 50, and 100 mm/min (0.98, 1.97, and 3.94"/min) or high speed, offering high accuracy on a wide range of applications.Some standards specify that a test device must pull with a specific, constant rate, which can''t be guaranteed with hand-actuated or pneumatic pull-test devices. The PullTester 320 is equipped with a speed-controlled motor, ensuring consistent pull rates. All necessary testing parameters are programmed via the CrimpCenter EASY software and saved with individual jobs for easy recall.The standard 12-position terminal holder accommodates a wide variety of terminals to handle most applications.

The triple-range PullTester 325 analyzes pull-off forces of up to 200 N (45 lbf), 1,000 N (225 lbf), and 2,000 N (450 lbf) for crimp/welded connections with different pull rates. The benchtop PullTester 325 measures pull forces of crimp and welded connections or many other possibilities. With the triple-range capability of 200 N (45 lbf), 1,000 N (225 lbf), and 2,000 N (450 lbf), the PullTester 325 can cover a wide variety of testing applications.There are two versions available with different selectable pulling rates:The PullTester 325-25 operates at pulling speeds of 25 or 50 mm/min (0.98 or 1.97"/min).The PullTester 325-50 has pulling speeds of 50 or 100 mm/min (1.97 or 3.94"/min).Both versions are equipped with a speed-controlled motor to ensure repeatability and accuracy. Pull forces can be measured in pound-force, Newtons, or kiloponds. The standard 14-position terminal holder serves a wide variety of terminals; more holders are available upon request.

The PullTester 326 uses pull forces of up to 200 N (45 lbf), 1,000 N (225 lbf), and 2,000 N (450 lbf) for destructive and nondestructive tests of crimp or welded connections. The triple-range capability gives the PullTester 326 great flexibility to handle a variety of testing and accuracy over a wide range of wires. The standard measuring ranges, which are individually calibrated, are 200 N, 1,000 N, and 2,000 N (45 lbf., 225 lbf., 450 lbf.); however, other variations are available by special order. With four selectable test modes, it can perform destructive and nondestructive tests (hold to a specified force).The PullTester 326 is equipped with a speed-controlled motor, ensuring consistent pull rates for repeatable and accurate data. Pull forces can be measured in pound-force, Newtons, or kiloponds. The standard 14-position terminal holder accommodates a wide variety of terminals to suit most applications. Upon request, more terminal holders are available.

As a module in a wire processing machine, the Q2205 measurement device measures with a defined pull-out speed of 25 or 50mm/min the pull-out forces of 20 to 500 N. The precision measuring device generates reproducible measurements and is suitable for very small to medium cross-sections of < 4 mm². It operates at a constant pull-out speed thanks to an embedded control loop. The pull-out forces are collected, transferred and compared with the set point. Seamless integration into the software of the base machine guides you step-by-step through the workflow. A test unit to check the accuracy of the Q2205 is available as an option: A series of measured values are recorded over the entire measurement range and automatically compared with the values of the test unit. A calibration certificate is created at the end of the process. The Q2205’s robust design makes it suitable for harsh conditions in the industrial sector.

The Q1210 precision measuring module for wire processing machines measures pull-out forces of 20 to 1000 N with a pull-out speed of up to 200mm / min. The Q1210 is extremely versatile thanks to the wide range of measured pull-out forces of up to 1000 N and a wide range of applications for small and large cross sections. It has a control loop that keeps the pull-out speed constant. The measured value is transferred directly to the base machine and compared with the target value. The measured pull-out forces can also be output via the WPCS interface. Easy operation is ensured thanks to ergonomic handling for left- and right-handed users as well as simple integration into the TopWin or HMI software of the base machine. The sensor-controlled clamping protection function also enables safe handling.
