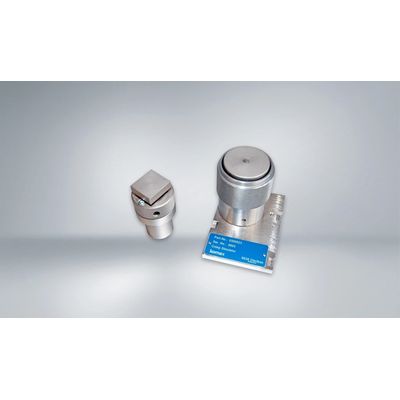

The Crimp Module Analyzer quality measuring device is used to measure and check the stability of the crimp module in μm using a two-stage force simulator. The crimp module analyzer allows the stability of the module stroke (STSA, Stroke Stability Analysis) to be measured for mci 7x1, mci 7x2, bt 7x2 and C13x0. A PC or laptop with at least Windows® 10 (64 Bit) is required to perform the test on a device with mci interface. On modern wire processing machines with EtherCAT interface (C13x0 crimp modules), the test is carried out directly via TopWin or Komax HMI. The measured values can be saved after quality control and loaded again later. It is also possible to generate and print out a clear report. In order to ensure the constant precision of the test equipment, the test case must be sent to Komax Switzerland annually for recertification.

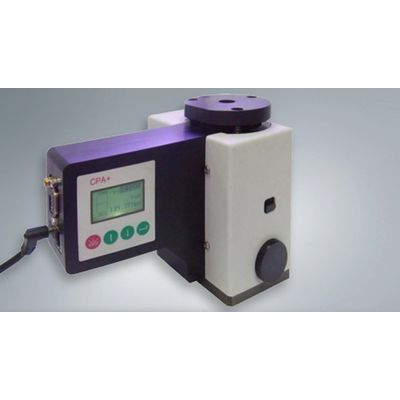

The CPA+ crimp force monitoring is the compact quality control and maintenance device for crimp modules– with integrated graphic display for analysis in real time.

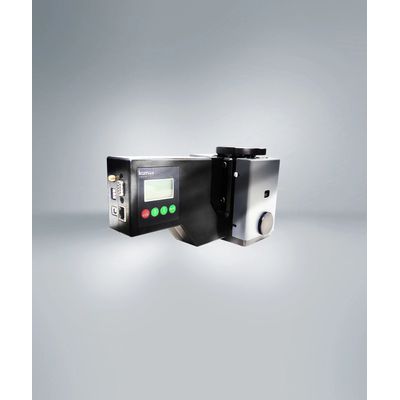

With the CPA PRO crimp force monitoring, a quick and accurate check of the performance of fully automatic wire processing machines is carried out– without an additional PC. The CPA PRO is a convenient, portable device that is universally used for testing crimping machines. A real-time graphic display shows the CPK index and standard deviation for shut height and crimp force. This measurement device can be used to perform regular preventive maintenance on crimping presses. Reports are generated directly in production and data analysis can be carried out on site. The shut height and pre-tensioning force are immediately shown on the LCD display. In addition, up to 20 crimp module data can be stored in the device. A timer and cycle counter controls the automatic triggering of the crimp module– ideal for quality control of crimp module manufacturers.
