Komax AG products

Low cost solution allowing unattended operation. WireStacker 1000 stack wire up to a length of 3.0 m (10 ft.). Greatly reduces labour involved in handling long wires. Passive design built for almost unlimited and trouble free cycles. Feed through design for handling lengths longer than 3.0 m (10 ft.). Uses dedicated wire stacker interface on the EcoStrip 9300 / 9320,. OmniStrip 9450, PowerStrip 9500 / 9550 and MegaStrip 9600. Extruded aluminium frame and all stainless steel construction Works equally well with short or long wires.

With its mobile frame and active wire ejection, the dps 375 deposit system with programmable batch separation is perfect for use with the Kappa 3xx family. The versatile dps 375 wire deposit system has programmable batch size sorting, making it the perfect complement to all third-generation Kappa cutting and stripping machines. For efficient and economical wire processing, wires up to a length of 3.5 m and a diameter range of 2 mm to 35 mm can be sorted and stored with the dps 375 deposit system.

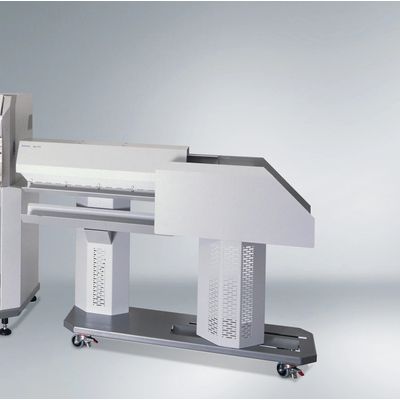

The synchronized WireStacker 3150 is designed for precise axial stacking of cables – available in lengths of 2.5 m (8.2 ft), 5 m (16.4 ft), 7.5 m (24.6 ft), and 10 m (32.8 ft). The built-in, synchronized driven transport belts of the WireStacker 3150 allow for stacking cables carefully and safely without wire jams, even for very flexible wires. It processes wires with a diameter of 1.5 – 25.4 mm (0.06 – 1”). The integrated batch tray allows for freely programmable batch production and enables the operator to perform additional tasks simultaneously with the production process. The WireStacker 3150 is easily controlled by I/O signals and speed information from the interface of an upstream cable processing machine. Apart from transporting the wire, the 45° tilted transport belt also ensures optimal guiding and secure ejection. The WireStacker 3150 excels in high flexibility, making it an important element within an efficient and precise cable processing line.
