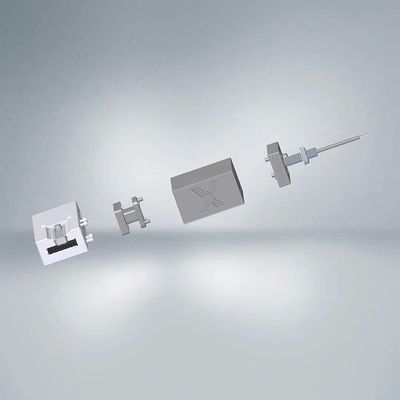

The MS5xx Test Adapter is a versatile interface between wire harnesses and measurement technology, and includes TSK Connect, which provides an advanced digitalization feature. The core benefits of using this new digital technology are significant time savings in project setups, increased flexibility, faster operational features, and improved productivity. The MS5xx Test Adapter offers an optimized setup time for fast availability of wire harness test systems with a wide range of connector options.TSK Connect, an added feature of the MS5xx Test Adapter, enables advanced digitalization for wire harness testing, further reducing handling and process costs through digital access to part-related information.In addition to these benefits, the MS5xx Test Adapter also provides increased flexibility by fitting to your current test infrastructure and production needs. Other models and sizes are available upon request to further meet your testing requirements.

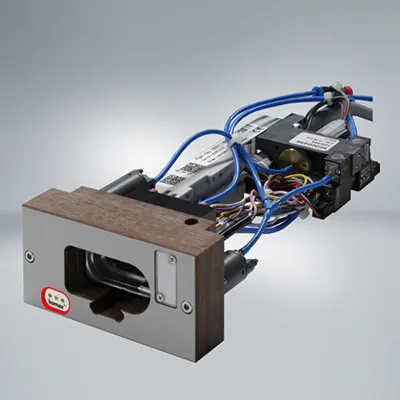

The MS1xx Test Adapter helps with testing of standard connectors such as IDC or crimped contacts, and is ideal for simple wire harnesses and electrical components. The contour of the adapter is designed to insert a connector of the wire harness, with a spring-loaded contact pin for each contact in the connector. The automated lock by the pneumatic locking cylinder ensures a stable connection. The status of the connection can be shown via the LEDs in the top plate.The MS1xx Test Adapter features variable top plate sizes and standardized interfaces for easy adaptation to testing requirements. It provides exact installation in the test grid for precise and reliable results. The adapter is suitable for use in automotive manufacturing, electronics assembly, and other industries that require reliable wire harness testing.Other models and sizes of the MS1xx Test Adapter are available on request, ensuring a tailored fit for your specific testing needs.

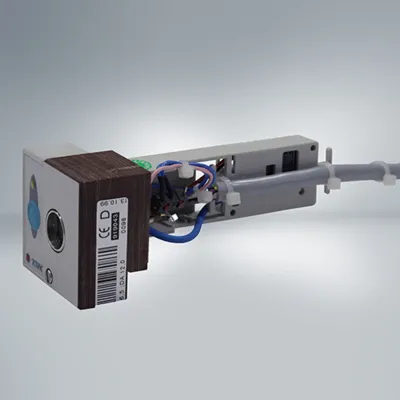

The MS3xx Test Adapter is an advanced and versatile component, with a wide range of connector options, including circular connectors and high-density connectors. One of the key features of the test adapter is its contour which contains a spring-loaded contact pin for each contact in the connector, ensuring a secure and accurate electrical connection. The contour is automatically locked by the pneumatic locking cylinder. In addition, the MS3xx Test Adapter includes variable top plate sizes that allow for convenient adaptation to your testing requirements. The status of the adapter can be easily monitored via the LEDs in the top plate. Standardized interfaces for test points, voltage, and pneumatic connections further simplify the testing process. Other models and sizes of the MS3xx Test Adapter are available on request, ensuring that you can find the perfect solution for your specific testing needs.

The MS5xx Test Adapter is a versatile interface between wire harnesses and measurement technology, and includes TSK Connect, which provides an advanced digitalization feature. The core benefits of using this new digital technology are significant time savings in project setups, increased flexibility, faster operational features, and improved productivity. The MS5xx Test Adapter offers an optimized setup time for fast availability of wire harness test systems with a wide range of connector options.TSK Connect, an added feature of the MS5xx Test Adapter, enables advanced digitalization for wire harness testing, further reducing handling and process costs through digital access to part-related information.In addition to these benefits, the MS5xx Test Adapter also provides increased flexibility by fitting to your current test infrastructure and production needs. Other models and sizes are available upon request to further meet your testing requirements.

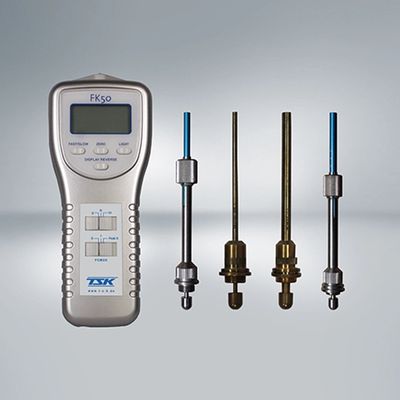

The FK50 spring force measuring device enables you to verify the spring force and spring travel of the contact pins (GKS/SKS) in your test adapter. Regular use of the FK50 will ensure that your contact pins are functionally correct, thereby improving the quality of testing on the test systems. This devices comes with various features, such as manual evaluation with a protocol or automatic evaluation via CS WIN nx® - Quality Professional. It is designed to work with contact pins from all well-known manufacturers, making it a versatile and flexible tool. The device provides efficient and safe testing, and is easy to handle. In addition to ensuring the quality of your test equipment, the FK50 also checks the quality of the contact pins themselves. The equipment comes with measuring prods with different measuring ranges, reference contact pins including a table, a calibration certificate, and measurement data transfer via RS232.

The Wireless Test Adapter enables real-time error detection and inline testing, ensuring faster production, and reducing manual checks in wire harness production. The Wireless Test Adapter enhances efficiency in wire harness production through seamless integration into static, rotary, and conveyor systems. It automates continuity and short-circuit testing at critical assembly stages, reducing human error, increasing first-pass yield, and ensuring strict quality standards. Its wireless architecture minimizes test system cabling while maintaining reliable, real-time communication with a central control unit. This enables instant quality monitoring and feedback, while supporting comprehensive data collection and traceability to drive continuous improvement. Running on a Linux-based system with intuitive HMI workflow guidance, the adapter simplifies setup, configuration, and operation.
